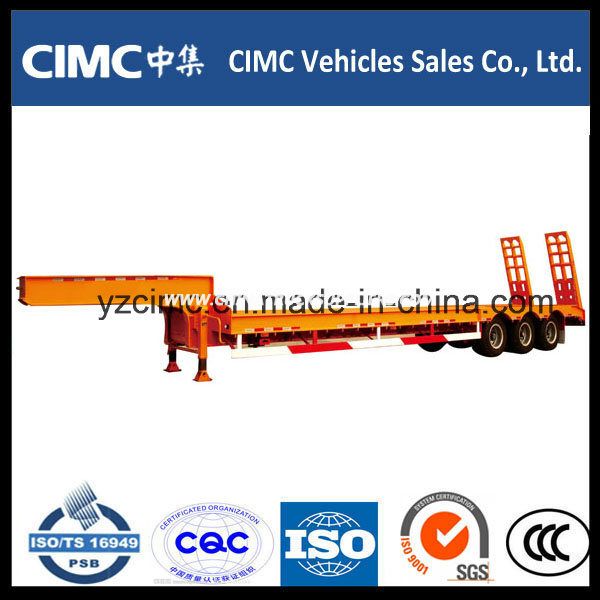

Cimc 50 Tons 3 Axles Low Bed Truck Trailer

AllCIMC vehiclesarecustomizable,welcomeinquiry!!!

Overall size: 13000*3000*3180mm
Pay flat-bed dimension: 9, 000*3, 000mm

Weight:
1. Curb weight: 12000kgs
2. Loading capacity: 50000kgs
3. Overall weight: 62000kgs

Configuration
A. Axle: FUWA Square Axle,13 ton capacity/set,3 pcs
B. Tire: 8.25R20-14PR,12pcs,made in china
C. Rim: 6.5-20,12pcs,made in china
D."I" Beam: 550, 25/30/14
E. Suspension: Spring suspension, leaf spring 8*16*90mm
F. Kingpin (welded): 3.5'
The height from Fifth wheel to ground: 1.3m
G. Landing gear:Two speed manual operation type with sand shoe
H. Brake chamber: Type 30/30 spring brake chamber
I. Brake system: Dual line pneumatic brake system.WABCO brake valve.
J.Floor: 4mm checked plate
K. Electric system: 24V, 7 pin cable Chinese national standard
L. 2 units of spare tire holder
M. One set of driver's tool (one tire spanner, one gudgeon bushing, one cranking bar)
N.Painting: As per customer's request

Contact
Mr. Allen
Mobile : +86 151 5082 2016
2015 brand new CIMC 3 axle 60ton low bed truck trailer for Africa

TrailerModel	3AxleLowBed Trailer
ModelNumber	CIMC9400TDP
Totalsize(mm)	13000*3000*1650
Workingsize(L*W*H)(mm)	9000*3000*1300
CurbWeight(KG)	7000
LoadingWeight(KG)	60000
AxleBrand	13TONAxleFUWABrand
AxleNumber	Three
Suspensionsystem	LeafSpringSuspension
SteelSpring	10/10/10leafspringsuspension
ThematerialofMainbeam	Theheightofthebeamis500mm,upperplateis 16mm,downplateis18mm,middleplateis10mm.
Platformplate	5mmDiamondplate
TireTypeandquantity	11.00R2012unitsradialtire
TractionPin	90MMor50MM
LandingGear	Standard28T
Brakesystem	DualLinebrakingsystem
SideGuard	Accordingtocustomer'srequirement
Painting	Colorascustomer'srequirement

Companyinformation
CIMCVEHICLESSALESCO.,LTD.

CIMCVECHICLEwasfoundedbyCIMCgroup,whichfixesthemissiontobecustomers'partnerformoderntransportation.CIMCisdedicatedtomanufacturingandsupplyingCIMCtrucks,CIMCtruckbodyassembly,trailers,tankequipment.Currently,CIMCownsUSD8.8billiontotalassets,USD2.6billionnetassets,USD8.4billionannualsalesandUSD0.6billionnetprofitsin2010,havingover150subsidiariesand63,000staffacrossChina,NorthAmerica,Europe,AsiaandAustralia.

Vehicles:CIMChasover1000linesofproductsin11series,includingcontainerchassis,flatbedtrailer,bulklorry,tanker,self-dumper,reefertrailer,van,curtainsidetrailer,mixer,pumptruck,carcarriervehicle,fireengine,sanitationvehicle,etc.Withtheannualoutputcapacityofover200thousandunits,itnowtakestheleadingpositionintheworld.Uptotoday,theGrouphasestablished22productionbases.

HeavyTruck:HaveitsownproductionC&Cbrandtruck.OtherheavytruckCIMCproducesthetruckbody,morethan2,000kindsoftruckbodyfordifferenttransportationpurpose.ThetruckchassiscooperateswithFAW,DONGFENGDFAC,SHACMAN,SINOTRUK,FOTON,BEIBEN,JAC,CAMC,SICHUANHYUNDAI,SAIC-Ivecoandsoon,includealltruckchassisbrandproductioninChina.

Welcomeglobalheavytruckdealertotakeasightseeingoftrucks,totastevaluesof"considerateservice,benefitsshare"!Willbringyoucost-savingsolutionsandeye-catchingreturns!

Contactinformation

CIMC VEHICLES SALES CO., LTD.
Address: 8floor, Cimc Plaza, No. 10 West Wenchang Rd, Yangzhou, Jiangsu, China
Website:yzcimc.en.made-in-china.com
www.cimc-vehicles.com
Tel:86-514- 8282 6119
Fax:86-514- 8732 5750
Mobile:86-151-5082-2016 (Mr.Allen)
