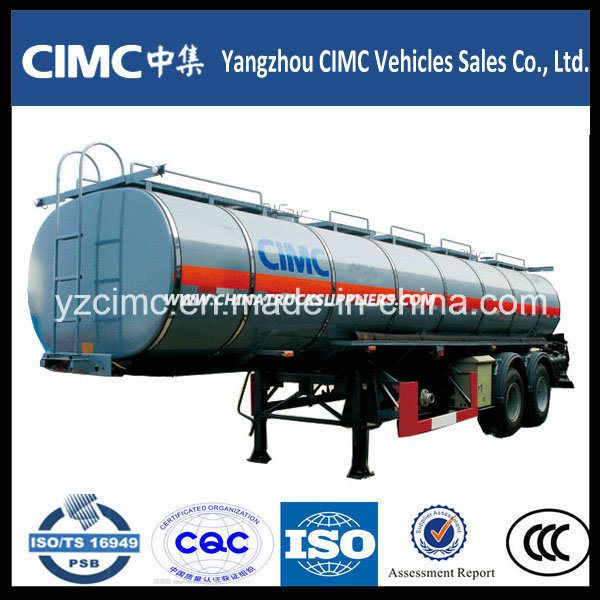

45m3 Bitumen Tanker Semi-Trailer

Type: Bitumen tanker semi-trailer

Model: CIMC9450GHY

DIMENSION:

Overall Length: 12900mm

Overall Width: 2500mm

Overall height: 3900mm

King Pin Setting: 1550mm

Wheel Span: 6,600 mm

Axle Spacing: 1,310 mm

Kin Pin Plate Height : H

RUNNING GEAR:

Suspension: Under mount tandem-axle suspension with equalizer; 10-leaf spring.

Axle: FUWA axle 13,000 kg capacity.

Brake: Dual line pneumatic brake system.

Parking Brake: Type 30/30 spring brake system on rear axles.

Wheel: 10 holes 9.0-22.5 steel Disc wheel 12pcs, made in China.

Tire: 12.00R22.5 tyre 12 pcs, made in China

King Pin : 2" king pin, made in China.

LANDING LEG:

JOST A400

Two speed manual operation type with sand shoe, made in China.

ELECTRICAL:

Voltage: 24 Volt.

Receptacle: 7 way

Light: Front marker lamp: white

Side marker lamp: white and red

Rear lamp: red

Turn signal lamp: amber

TANK SPECIFICATION :

Tank Water Volume are of 45000 LT, Single Compartment

Tank material: carbon steel,thickness 5mm.

Bulkhead: thickness is 6mm.

Baffle: thickness is 3mm approx.

Shape of tank: ellipse(double "D").

Test pressure designed:36kpa.

TANK ACCESSORIES AND FITTINGS :

Two manhole

Diesel Burner

Brand: RIELLO/Italy,

Model: PRESS 1G

Heating Pipe: 6 PCs D=102mm

Insulation Cladding: fiberglass 100mm

OTHER FITTINGS

A detachable steel ladder are equipped at the rear of the tank

Anti-skid walk way along the entire length of the tank.

To protect tank from accidents, tank rear far end projection is more than 100 mm in front of the rear bumper of the chassis.

Side protection of the rectangular hollow c.steel deams to be constructed at the left side of the trailer in front of the front rear axle to protect the trailer from against accidents.

Fender: Plastic material, semicircle.

Hose carries: 2 pcs,.

Hose: 2 pcs
