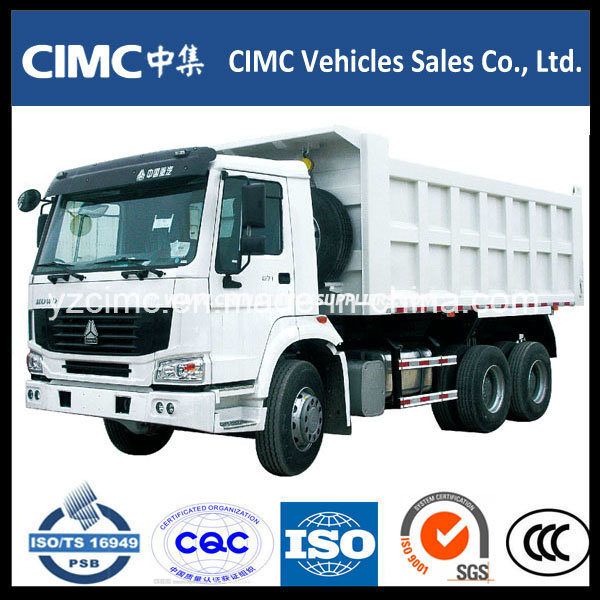

Sinotruk HOWO Euro2 6*4 420HP Tipping Dumper Lorry Tipper Dump Truck

Our main products include full series products of CNHTC(HOWO,STR,Golden Prince,etc.), buses, CIMC trailers, including Dump Truck, tractor truck, concrete mier truck, sprinkler truck, water/Oil tank truck, Truck Mounted Crane, concrete pump truck.etc, low bed semi-trailer, flatbed semi-trailer, bulk cement semi-trailer, skeleton semi-trailer and spare parts for them.

HOWO 6x4 336HP Dump Truck 16CBM Left Hand Drive

Overall Dimension	8545mm*2496mm*3350mm (L*W*H)
Payload	25-30ton		Curb Weight	12500kg
Front Overhang	1500mm		Rear Overhang	1870mm
Wheelbase	3825mm +1350mm
CHASSIS
Chassis Brand	SINOTRUK HOWO
Driving Type	6x4
Cab	HW76, right hand drive, air-conditioner, one bed
Engine and Power	Brand: SINOTRUK, diesel engine, 336hp (247kw), 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling, Euro II emission standard
Steering	ZF8098, hydraulic steering with power assistance
Transmission	HW19710, 10 forward speeds and 2 reverse
Clutch	Model: 430, diaphragm clutch
Front Axle	HF9, load capacity 9 ton, drum brake
Rear Axle	HC16 tandem axle, load capacity 13000kg x2, ratio 5.73
Tire	12.00R20, 11units including 1 spare tire
CARGO BODY
Inside Dimension		5400mm*2300mm*1350mm(L*W*H)
Hydraulic Cylinder		Middle Lift
Steel sheet thickness		Floor 8mm, side wall 6mm
Tailgate		One-piece tailgate with upper articulation, safety lock system
