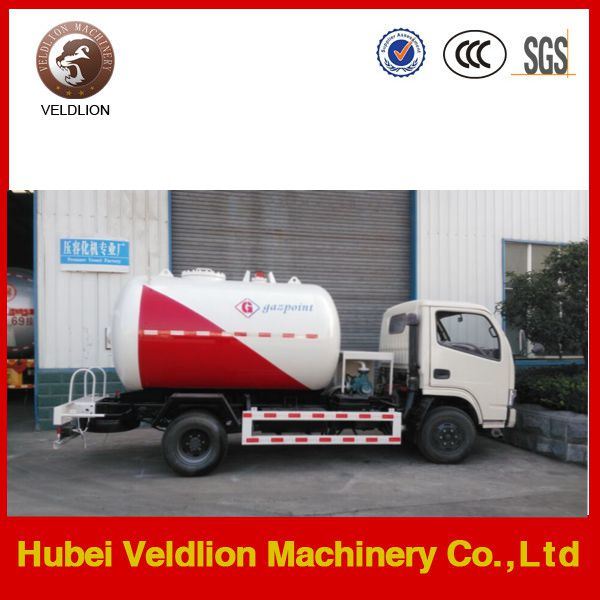

5000L Mini LPG Dispenser Truck

LPG(propane) pressure vessels/tanks, trailers, trucks

-----------------------------------------------------------------------

*LPG (propane) dispenser truck *

»I.Product Describution

Manufacturer:Hubei Veldlion Machinery Co.,Ltd.

*LPG gas dispenser truck also called lpg filling truck, lpg gas filling truck, mobile lpg gas truck, mobile cooking gas truck, mobile LPG Truck etc, and the volume we can produce from 3000L ---25000L mobile cooking gas dispenser truck.

Features of ourwater tank truck :

1. The tank is one important part of the liquefied gas tank or truck

2. The tank consists of the cylinder shell and standard ellipsoidal head.

3. The tank's material is high intension steel plate Q345R that is specially used in pressure vessel.

4. The double side auto-welding is adopted in tank's main welding joints.

5. The 100% x-ray checking shall be done to A and B kinds welding joints and shall accord with IIgrade requirements of JB4730 'Non-destruction testing for Pressure vessels'.

6. The fully magnetism checking or penetrate checking shall be done to C and D kinds welding joints and shall accord with Igrade requirements of JB4730. PWHT shall be done after the welding of tank. The hydraulic test shall be done after the post weld heat treatment.

7. The manhole of the tank is used for cleaning and maintenance of the tank's inside. The baffles are mounted on the tank's inside to prevent wave. The seat is welded on the tank's bottom.

8.After tanker assembly, have carried on the gas leak test to the complete vehicle according to the design pressure, authorize third party to have qualification supervise after examining by country-qualified making available to the users.

»II.LPG dispenser truckspecification :

Item		unit		Parameter
Vehicle model				5000L LPG dispenser Truck(RHD)
Horse Power		ps		95
Overall dimension		Mm		6100*2500*2350
Fact cubage		L		5500
GVW		Kg		6500
Rated loading capacity				2520
Mass in working order				3900
Max vehicle roll angle				35°
Wheel base				3300
Full load		Front axle		2645Kg
		Rear axle		3850Kg
Design limited velocity		Straight road		90Km/h
		Turning		25Km/h
Tire specification		7.00-16		Engine type				CY4102-C3F
Traction system		4*2		transmission				5-speed
Number of axles		2		Electric system				24v
Operation control system		Electrically hydraulic control		Allowable passengers in cab				2
Tank		Design				1.77Mpa
		Design temperature				50°
		capacity				5m³
		Filling medium				LPG
		Tank material				Q345R
		Corrosion allowance				1.00 mm
		Heat treatment method				PWHT
		Tank mass				1500 kg
		Hydraulic test pressure				2.66Mpa
		External Dimensions (In-Diameter*Thickness*length)				1500*10(8)*3600
		Vessel's sort				The third kind
		Service Years				ten years
Safety valve		Type					A412F-2.5
		Model					Inner full liff
		Nominal Pressure					PN2.5MPa
		Nominal Diameter					DN80mm
		Opening Pressure					1.86-1.95MPa
		Closing Pressure					>1.49MPa
		Complete Opening Pressure					<2.12MPa
Urgency Switch Valve		Type					QGJ43F-2.5
		Nominal Pressure					PN2.5Mpa
		Nominal Diameter	Gas Phase				DN25mm
			Liquid Phase				DN50mm
		Operation Way					Manual
		Closing Time					10sec
		Melting switch temperature					70±5°
Indicator for liquid level		Type					UQZ-2.5-1500
		Model					Ball float style
		Nominal Pressure					PN2.5MPa
		Surveying range					0-1500
		Precision					2.5 Grade
Load and unload system		Type					Q41F-2.5P/CQA41F-2.5p
		Nominal Pressure					PN2.5MPa
		Tie-in model					Quick tie-in
		Gas phase pipe					DN25mm
		Liquid phase pipe					DN59mm
Production cycle	Warranty	30 days			12months from the supply day

»III.Our Advantages

Why choose us?


Experience
10 years experience of production,sales,research and development in the field of special trucks.

Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.

Good quality
Has solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.

Chassis supply
We have avery good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,iveco,faw,hino,camc,north-benz,ect.
Production supply capacity

Company scale
More than 3000 employees with 1000 acres factory, total asset 2billion.
We manufacture the truck as soon as possible once your order /confirm/ied.And for the stock, we can delivery it immediately.

Our services
1.We can send our technician to arrive the customer's country to provide the service and also we can train customer's workers for free.
2.Free consultation forever.When you meet small problems, professional advices can help you to solve them soon.
3.One year free cost warranty.
4.Spare parts forever.When you need spare parts, we can send them to you immediately.




»IV.Company Introduce:


Hubei veldlion machinery co., ltd ,which is appointed by the ministry of industry and information technology of china, is abig manufacturer producing all kinds of special trucks.It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation.What's more, it has roundly passed the certificaton of iso 9001-2008 and the 3c certification(china compulsory certification) and other certifications that export needed.

Our company can design and produce many kinds of special trucks accurately as your request.Also own independent export right, wit amount of clients overseas, such as the u.N., sudan, nigeria, north america, west africa, congo, vietnam ghana, kazakhstan etc.We strives for the survival by the quality and credit standing is the guarantee of our success.

» V.Packaging &Shipping

Thick wax polished on products before shipping to protect.Use container, RORO/bulk ship or others as your requirement.We provide transportation insurance to guarantee the new and great condition of products for customers
