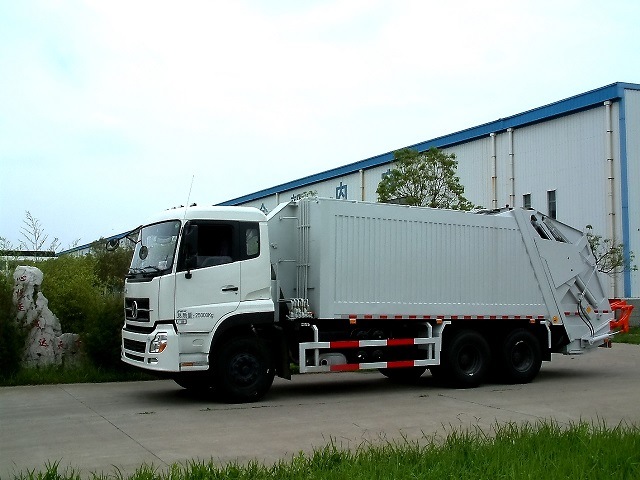

Big Dongfeng Garbage Truck, Compactor 20m3, Payload 16t

Technology
Design, manufacture and inspection process is 100% originated from Japan FUJI Heavy Industry SUBARU brand refuse truck which has experience of 50 years, 97 patents and top one of world sales market.

Reliable Performance
Key components are imported from Japan ShinMaywa including hydraulic valve, PLC controller which ensures the stabilization of working performance.



Unique Advantage
Anti-R guide rail--- collecting more garbage and quick loading.
Leaking-proof device---collecting the dirty water to sewage tank.
High anti-corrosion steel---ensures long service life.
Two-way compression technology
---Bigger loading capacity.
---Compression capacity is more than 1:3, compressed garbage density 600-800kg/m3.
---Loading and discharge time is short which saves the operation cost.
---Self cleaning device could cleaning the vehicle after working.

DATA

	Unit	Rear Loading 20M3
Model No.	YD5251ZYSDFE5
LxWxH	mm	9860×2500×3420
Chassis .		DongfengDFL1250A13
Max. Wt.	kg	25000
Wheelbase	mm	4350+1350
Engine		CumminsISD245 50 /ISD270 50
Emission standard		EURO V
Hydraullic Pressure	Mpa	19.6
Load Time	s	30
Unload Time	s	<45
