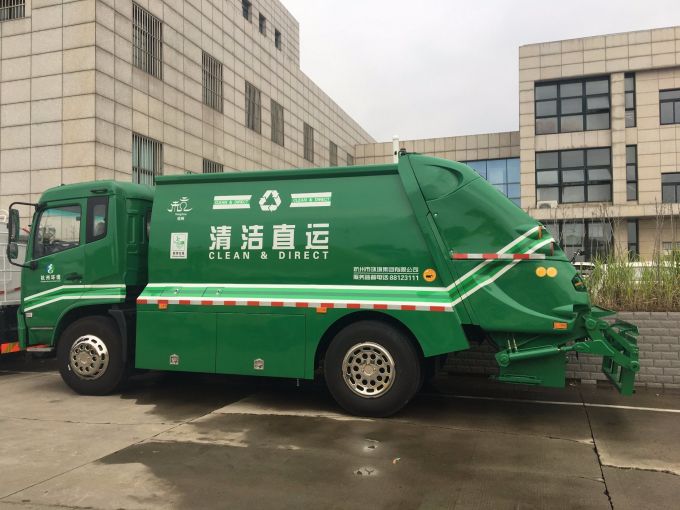

Professional Customized Garbage Truck with Isuzu Hino HOWO Daf Chassis

Overall Length (mm)	7460
Overall Width (mm)	2500
Overall Height (mm)	3050
Rated Mass (Kg)	8355
Max.Loading Mass(Kg)	7250
Max. Speed(Km/H)	98
Model	ISD190 50
Manufacturer	Dongfeng Cummins.
Power (HP/KW)	190/140
Fuel Consumption(100Km/L)	27.3
Fuel	Diesel oil
Exhaust Standard	Euro 5
Manufacturer	Dongfeng DFL1160BX1V
Steering	Integral hydraulic power steering
Fuel tank	240L
Tyre	9.00-20
Front/Rear Overhang (mm)	1430/1530
Wheel base (mm)	4500
Wheel Track(mm)	1880/1800
Valve Manufacturer	ShinMaywa (Japan)
Tank Capacity(m3)	12(8T)
PLC	imported

Note: We can supply different kinds of Garbage Trucks,Water Trucks,swppers and customized upper units with desgin requiements in especial.Our truck chassis brands are from JAC,Dongfeng,HOWO,HINO,ISUZU,FOTON(top 1 level in China market)










We,JiangsuYuedaSpecialVehicleCo.,Ltd.WhoisoneofthebiggestmanufacturerofcompressiongarbagetrucksinChina,andalso2008BeijingOlympic,Paralympic Games,2010ShanghaiWorldExpo.,2016HangzhouG20Summitdesignated
environmentalsanitationvehiclesupplier.From it was established, it supplied more than 8000 units to the market,and 90% products are for China government.Andwe also supplyagriculture machines,bus,UAV(unmanned aerial vehicle),
YuedaVehicleisabranchvehicleindustryofYuedaGroup(ChinaTop130,ownsfamousbrandsincludingKIA car,
Mahindra Jinma tractor,Aunde textile,Carrefour supermarket,Costa coffee,Triumph bra,Diaverum health system), cooperateswithFujiHeavyIndustries(WorldTop500),introducedthemostadvancedtechnologyfromit.

Yueda Vehicle has 3 serials, more than 50 models, the main products are compression garbage truck(rear & side mounted), garbage transit trucks, road cleaning trucks, water trucks, high-pressure washing trucks, food waste garbage trucks, garbage stations, and so on.

ThetotalinvestmentofYuedavehicleisRMB356million,coversanareaofnearly200,000squaremeters,152acresofland
planning,spareplant135acres,thetotalinvestmentisRMB180millionforfirstphaseproject.
