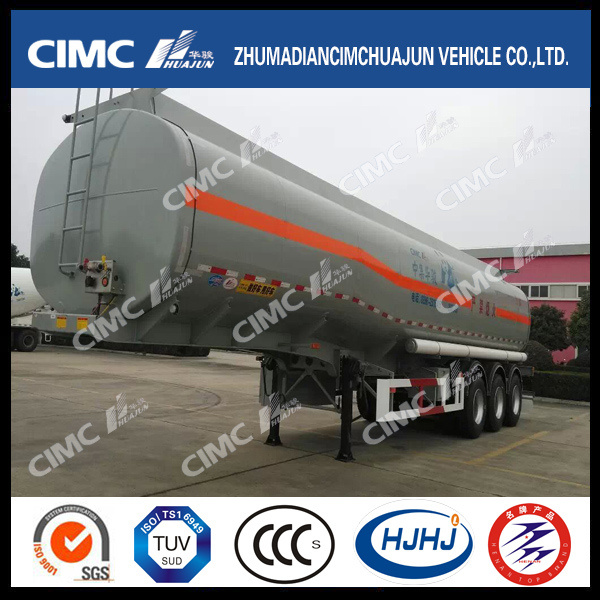

Cimc Huajun 42m3 3axle Gasoline Tanker

Product Description:Multiple structures and multiple materials of tank body to meet individual loading demands!
Choice of multiple models and multiple series to meet transport demands of different medium!

Dimension	12950x2500x3950(mm)
Kingpinsetting	1350(mm)
Kingpinplateheight	1310(mm)
Axle Space	6650mm+1310mm+1310mm
Tareweight	9500kg
Loadingcapacity	40000L

Configration:

Lanidng Gear	Tfoc/Jost 28T One-Speed Landing Gear
Kingpin	Optional for Baohua/Jost 2.0"/3.5"
Brake system	Duallinepneumaticbrakesystem
ABS	Yes
Brake Chamber	Type30/30springbrakesystemonallaxles
Suspension	springsuspension
Axle	FUWA/BPWaxle,13toncapacity/set,2pcs
Tire	11.00R20,8pcs
Rim	8.0-208pcs
Tool box	1pcs
Spare Tire Carrier	2pcs

TANK SPECIFICATION:

Compartment	one
Tank Material	Carbonsteel,thickness5mm
Bulkhead	Thickness5mm
Baffle	Thickness4mmapprox
Shape of Tank	Ellipse(double"d")
Testpressuredesigned	36kpa
Fireextinguisher	2pcs
Manhole	one
Dischargehose	4x6mm
Hosecarries	2pcs

Product Features:

1, It's appplicable for the transport of all kinds of liquid chemical products,such as diesel,gasoline,caustic soda,concentrated sulfuric acid,and crude oil etc.The inside of tank body is corrosion-proof treated to meet the transport demands for all kinds of liquid foods and chemical liquids.
2, The tank body is in shape of oval,rounded rectangle, or circle and is designed as per requirements of national standard to improve the operation safety.
3, The OEM parts fromdomestic and foreign renowned brands are adopted, featuring elegance,durablility and reduction of operation cost and repair cost.
4, The liquid tanker semi-trailer obtained multiple national patents ,featuring light dead weight and low gravity center of whole vehicle.
5, The traveling mechanism of semi-trailer products adopts high strength national standard steel to guarantee the resistence against distortion,vibration,and bump and meet the loading requirements on different roads.
6, The tank body adopts the shotblasting ,phosphating,and derusting processes and high polyester powder coating,featuring high paint adhesion and elegant ,shining ,and lasting performance.
7, The whole vehicle adopts special electric harness with explosion-proof and contaminaion-proof to guarantee circuit safety.


More photos for your review:




Company information:

CIMC VECHICLE was founded by CIMC group, which fixes the mission to be customers' partner for modern transportation. CIMC is dedicated to manufacturing and supplying CIMC trucks, CIMC truck body assembly, trailers, tank equipment. Currently, CIMC owns USD 8.8 billion total assets, USD 2.6 billion net assets, USD 8.4 billion annual sales and USD 0.6 billion net profits in 2010, having over 150 subsidiaries and 63, 000 staff across China, North America, Europe, Asia and Australia.
Vehicles: CIMC has over 1000 lines of products in 11 series, including container chassis, flatbed trailer, bulk lorry, tanker, self-dumper, reefer trailer, van, curtain side trailer, mixer, pump truck, car carrier vehicle, fire engine, sanitation vehicle, etc. With the annual output capacity of over 200 thousand units, it now takes the leading position in the world. Up to today, the Group has established 22 production bases.
Heavy Truck: Have its own production C & C brand truck. Other heavy truck CIMC produces the truck body, more than 2, 000 kinds of truck body for different transportation purpose. The truck chassis cooperates with FAW, DonGFENG DFAC, SHACMAN, SINOTRUK, FOTON, BEI BEN, JAC, CAMC, SI CHUAN HYUNDAI, SAIC-Iveco and so on, include all truck chassis brand production in China.

FAQ

Q1.Areyouamanufacturer?
Yes,wehavebeenin specialvehiclemanufacturingandmarketiing for over 20 years.

Q2.Whatmarketsdoyour vehicle export to?
Europe,North&SouthAmerica,South-East Asia,Africa,Oceanica,MiddleEast countries etc.

Q3.WhatinformationshouldIletyouknowifIwanttogetaquotation?
Pleaseletusknowthe your purpose,road condition,cargo type,tons of your cargo,dimensions of trailer,quantity etc. The more info you provide, the more accurate model and price you will get.

Q4.Isitavailabletoprintourownbrandonthevehicle?
Totallyacceptableas you wish.

Q5.HowcanIgetthepriceofyourvehicle?
Youcanconnectwithusthroughanyofthefollowingcontactinformation.Ourpersonalizedservicepersonwillrespondyouwithin24hours.
