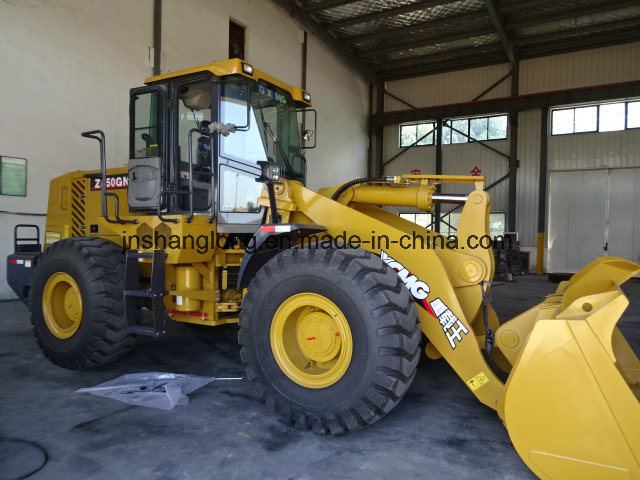

Heavy Construction Machinery 5t Front Wheel Loader (ZL50GN)

Heavy Construction Machinery 5T Front Wheel Loader (ZL50GN )

1. How about ZL50GN wheel loader? (5T front wheel loader )
1). The large rock bucket with capacity of 3.0m³ Is improved in terms of the work efficiency and adaptation
2). Excellent performance
The strong breakout force of 17 ton and strong traction of 17.5 ton ensure that the machine could adapt
To various tough condition.
3). With the antiskidding groove, the ladder step features wide ladder face, guaranteeing the safety
Operation, and easily getting on and off.

2. Main parameters of 5T front wheel loader.
1). Operating weight: 18000 kg
2). Dimension (L x W x H ): 8130x3000x3508mm
3). Rated load: 5000kg
4). Bucket capacity: 3.0m3
5). Dumping height: 3090mm
6). Dump distance: 1130mm

Basic parameter
Operating weight	t	17.5
Dimension (L x W x H )	mm	8200x3000x3485
Wheelbase	mm	3300
tread	mm	2250
grade ability	o	30
tyre size	23.5-25-16PR
Engine
Engine model	WD10G220E21
Rated power/rotary speed	kW/r/min	162/2200kw/r/min
Work performance parameters
Rated load	kg	5000
Bucket capacity	m3	3.0
Bucket width	mm	3000
Dumping height	mm	3090
Dump distance	mm	1130
Overall height-bucket fully raised	mm	5262
Max. breakout force	kN	170
Hydraulic cycle time-raise:	s	6
Total time of three devices	s	11
articulation angle	o	+(-)35
Transmission type	Planetary type power shift;
Driving performance parameters
Tipping load	kN	123
Max. tractive effort	kn	155-165
Min. turning radius over outside bucket	mm	7300
