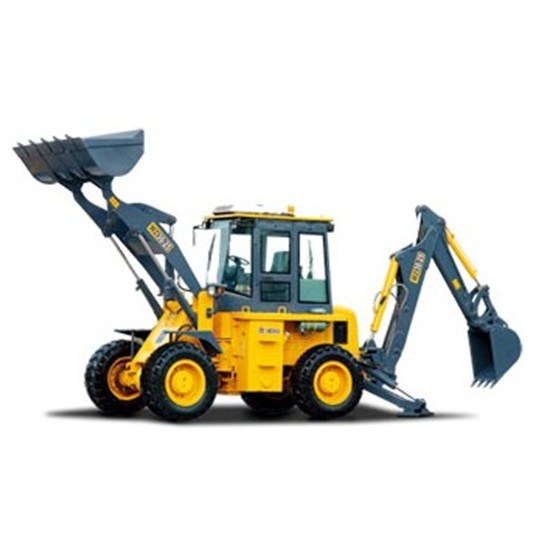

Slcm SL30-25 Mini Backhoe Loader

SLCM SL30-25 Mini Backhoe loader

SLCM is a machinery manufacturer with 30 years history. The three dominant products are wheel loader, truck crane and excavator. The annual production capacity can reach 40,000 units.
Currently the company has more than 500 staff, over 100 staffs are technical experts and other 100 staffs devote themselves into international market. SLCM has gradually set up business departments in North Africa, South Africa, Middle Asia, Russia, Middle East, South America, and South-east Asia. It has exported products to more than 50 countries and regions and the annual export volume add up to 10 million.
In terms of production, by adopting ERP system, the company handles orders accurately and checks production press strictly. Every order is under the charge of one specialized person. From order generation to completion of delivery, customers can check at any time, which guarantees delivery cycle and product quality.

SL30-25
MAIN PARAMETER
Overall operating weight	7640kg
Transport Dimension (mm) L*W*H	5910x2268x3760
Wheel base	2250mm
Min. Ground clearance	300mm
Bucket capacity	1.0m 3
Breakout force	38kN
Loading lifting capacity	2500kg
Bucket dumping height	2742mm
Bucket dumping distance	1062mm
Digging depth	52mm
Backhoe capacity	0.3m 3
Max. Digging depth	4082mm
Single angle of excavator grab	190°
Max. Pulling force	39kN
ENGINE
Model	YTR4108G60-1
Type	Inline direct injection four-stroke and injection combustion chamber
Cylinder-inline diameter x stroke	4-108x120
Rated power	55kw
Rated speed	2400r/min
Min.fuel consumption	≤216g/km.h
Max.torque	≥261.7N.M/1800r/min
Displacement	4.4l
STEERING
Model of steering device	BZZ5-250
Steering angle	±36°
Min.turning radius	5018mm
Pressure of system	12Mpa
AXLES
Manufacturer	Domestic well-known
Main transmission type	Double reduction
Final reducer	Single stage final reducer
Rated loader of axle	7.5t
TORQUE CONVERTER
Model	YJ280
Type	Single-stage three elements
Max.efficiency	84.4%
Inlet pressure	0.4mpa-0.55mpa
Outlet pressure	1.2mpa-1.5mpa
Cooling method	Oil-cooling pressure circulation
GEARBOX
Type	Fixed shaft power transmission
Oil pressure of clutch	1373kpa-1569kpa
Gears	Two gears ahead,two gears astern
Max.speed	22km/h
TYRE
Model	16/70-20
Pressure of front wheel	0.2Mpa
Pressure of rear wheel	0.22Mpa
HYDRAULIC SYSTEM
Digging power of excavamtor grab	46.5KN
Digging power of dipper	31KN
Bucket lifting time	5.4s
Bucket lowering time	3.1s
Bucket lowering time	2.0s
