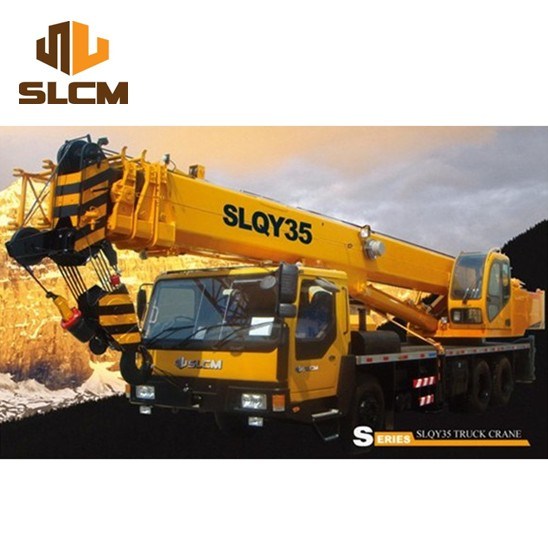

Slcm 35t Construction Crane Truck

SLCM 35T Construction Crane Machine

SLCM is a machinery manufacturer with 30 years history. The three dominant products are wheel loader, truck crane and excavator. The annual production capacity can reach 40,000 units.
Currently the company has more than 500 staff, over 100 staffs are technical experts and other 100 staffs devote themselves into international market. SLCM has gradually set up business departments in North Africa, South Africa, Middle Asia, Russia, Middle East, South America, and South-east Asia. It has exported products to more than 50 countries and regions and the annual export volume add up to 10 million.
In terms of production, by adopting ERP system, the company handles orders accurately and checks production press strictly. Every order is under the charge of one specialized person. From order generation to completion of delivery, customers can check at any time, which guarantees delivery cycle and product quality.

SLQY35
DIMENSION
Overall dimension (L*W*H) (mm)	13280*2500*3480
Outrigger longitudinal span (mm)	5330
Outrigger transversal span (mm)	6110
WEIGHT
Total weight in travel (kg)	34680
Front/ Rear axle load (kg)	13180/ 21500
ENGINE
Engine model	WP10.336
Engine rated power (HP/r/min)	336/2500
Engine rated torque (N.m/r/min)	1250/1200~1600
WORKING PERFORMANCE
Max.rated lifting capacity (kg)	35000
Lifting moment for basic boom (KN.m)	1191
Boom lifting height (m)	34
Jib lifting height (m)	48.2
Single line speed (m/min)	120
Slewing speed (r/min)	2.5
TRAVELLING PERFORMANCE
Max. travelling speed (km/h)	75
Max. grade ability (%)	30
Min. turning radius (m)	12
Min. ground clearance (mm)	240
Approach angle (°)	17
Departure angle (°)	10.2
