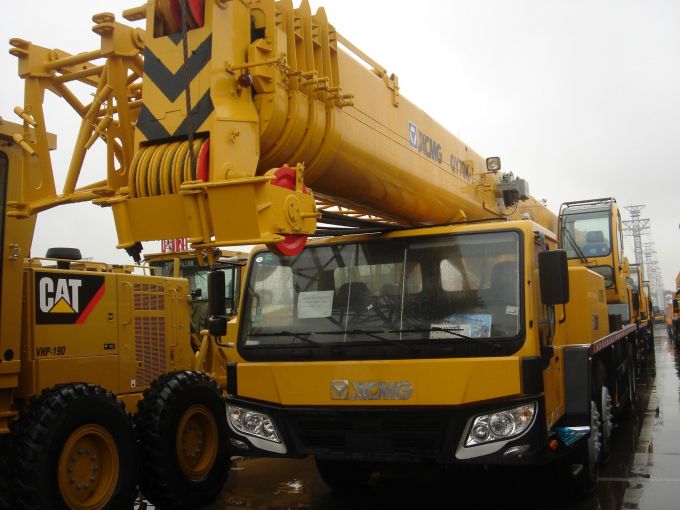

Hot 70 Ton New Mobile Truck Crane (QY70K-I)

70 ton new mobile truck crane QY70K-I

The features of Truck Crane QY70K-I:
The innovative jib system adopts embedded block, plug-in boom head and international advanced U section jib, which has excellent lifting performance and safe and reliable lifting work.
Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.
The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.
The humanity design makes the cab and control cab more spacious, and easy to operate.
Six unique manufacturing technologies ensure the high quality.
The working condition expands twice. Newly add 5t counterweight.

Dimension	Unit	QY70K-I
Overall length	mm	13930
Overall width	mm	2800
Overall height	mm	3575
Weight
Total weight in travel	kg	43000(without 1tvice counterweight)
Front axle load	kg	17000
Rear axle load	kg	26000
Power
Engine model		WD615.338(domestic III)
Engine rated power	kW/(r/min)	276/2200
Engine rated torque	N.m/(r/min)	1500/1400
Travel
Max. travel speed	km/h	80
Min. turning diameter	m	24
Min. ground clearance	mm	327
Approach angle	°	19
Departure angle	°	13
Max. grade ability	%	40
Fuel consumption for 100km	L	45
Main performance
Max. rated total lifting capacity	t	70
Min. rated working radius	m	3000
Turning radius at turntable tail	m	3.55
Max. lifting torque	kN.m	2303
base boom	m	11.6
Fully extended boom	m	44.5
Fully extended boom+ jib	m	59.5
Longitudinal outrigger span	m	6.1
Lateral outrigger span	m	7.3
Working speed
Boom luffing time	s	60
Boom full extension time	s	≤150
Max. swing speed	r/min	≥2.0
Max. speed of main winch (single rope) (no load)	m/min	≥130
Max. speed of aux. winch (single rope) (no load)	m/min	≥108
