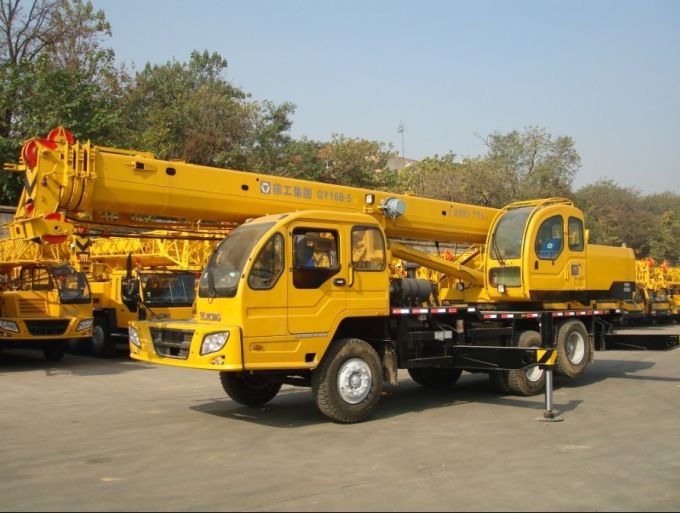

16 Tons Construction Truck Crane (QY16B. 5)

16 Tons Construction Truck Crane(QY16B. 5)
Including QY8D QY12 QY16C QY16D QY20B QY25K QY25K5 QY30K5 QY35K QY40K QY50B QY50K QY60K QY70K QY80K QY100K QY130K cheap crane machines.

Main Features:
1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly.

More information, please contact Ady at any time. Our Company Information:
Shandong Shanglong Economic and Trade Corperation Ltd. Locates in Jinan City, the capital of Shandong Province. Taking the advantage of rich resources and convenient transportation, the company closely meets the worldwide customers requirements, pushing ourselves into the export of all kinds of industrial products. Through years development, we have established good business relationships with a great number of factories and companies which have done business with us.

Adhere to the belief, preciseness, diligence, progress, innovation, our company will spare no efforts to dedicate itself to the satisfaction and benefit of our customers. Please just send us your inquiry with the detailed specification and quantity, we will then send you our breathtaking offer immediately. You are assured of our best quality products and the strongest support. The faster movement will definitely get you the more market share and profits.

Dimension	Unit	QY16B.5
Overall length	mm	12110
Overall width	mm	2500
Overall height	mm	3250
Weight
Total weight in travel	kg	24000
Front axle load	kg	6400
Rear axle load	kg	17600
Power
Engine model		WD415.21 SC8DK230Q3
Engine rated power	kW/(r/min)	155/2200170/2200
Engine rated torque	N.m/(r/min)	820/1400 830/1400
Travel
Max. travel speed	km/h	75
Min. turning diameter	mm	20000
Min. ground clearance	mm	270
Approach angle	°	21
Departure angle	°	10
Max. grade ability	%	24
Fuel consumption for 100km	L	≤35
Main performance
Max. rated total lifting capacity	t	16
Min. rated working radius	m	3
Turning radius at turntable tail	m	3.14
Max. lifting torque	KN.m	720
base boom	m	9.9
Fully extended boom	m	31.1
Fully extended boom+jib	m	39.4
Longitudinal outrigger span	m	4.6
Lateral outrigger span	m	5.4
Working speed
Boom luffing time	s	60
Boom full extension time	s	95
Max. swing speed	r/min	2.5
Main winch full load/no load (single rope)	m/min	54/100
Aux. winch full load/no load (single rope)	m/min	54/100
