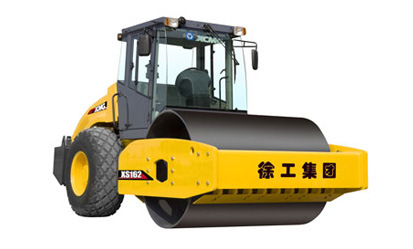

Roller Compactors 16 Ton Xs162j

Roller Compactors 16 Ton XS162J

XS162J Road Roller:
Hydraulic vibratory rollers are suitable for compaction of non-cohesive materials such as gravel, crushed stone, sand-macadam mixture, sandy soil and rock filling etc. On base course, sub-base and embankment fill construction, which are ideal equipment for high-class highway, railway, airport, harbors, dams and large-scale industrial ground.

Future of XS162J Road Roller:
Powerful Cummins diesel engine; Hydrostatic wheel & drum travel drive operated by a single lever at two range infinitely variable speeds.
Adjustable frequency and amplitude vibration device with imported vibrating pump and motor.
Parking brake hydraulically mounted in central input of the driving axle with oil-cutoff braking for reliable safety.
Circle arc glasses cabin with air conditioner(option) and curve engine hood for unique streamline shape appearance
Engine mounted with backward power output and turnover engine hood allow easy access to the main hydraulic components.

Model	Unit	XS162J
Operating weight	kg	16000
Weight on front drum	kg	7700
Static linear pressure	N/cm	362
Speed range	km/h
Speed I		2.54
Speed II		4.97
Speed III		10.51
Theoretical gradeability	%	30
Min. external turning radius	mm	6500
Steering angle	°	±33
Oscillating angle	°	±11
Vibration frequency	Hz	28
Nominal amplitude (high/low)	mm	1.9/0.95
Excitation force (high/low amplitude)	kN	290/145
Engine model		SC8D156.2G2B1
Type	Water cooled, pressurized	Water cooled, pressurized
Max. power	kW	115@1800r/min
Engine oil consumption	g/kW.h	223
Hydraulic oil tank capacity	L	170
Fuel tank capacity	L	240
