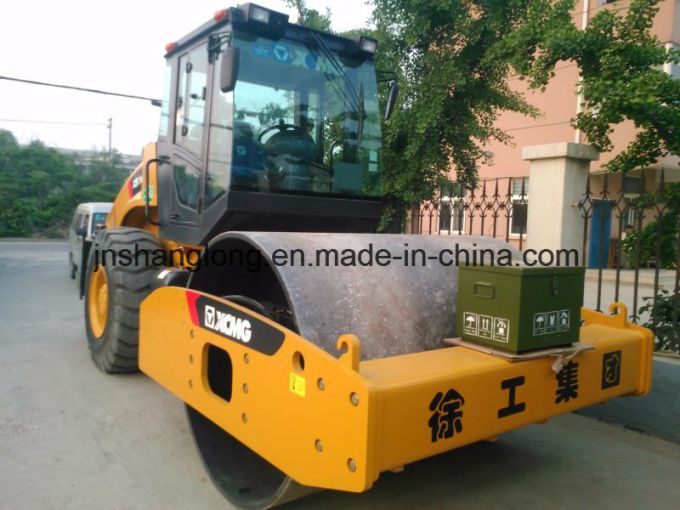

China Single Drum Vibratory 16ton Road Roller (sheep foot)

China Single Drum Vibratory 16Ton Road Roller (sheep foot)

XS143J/XS163J/XS183J vibratory compactor is a kind of heavy duty self-propelled vibratory compactor. It can effectively compact various soil layers and rock fill, and can be applied to the constructions of modern freeways, airports, embankment fill, ports, dams, railways, mines, etc.
Performance feature:
The spacious and bright cab features wide view and comfort.
Simple operation:
The humanity instrument panel has a reasonable layout, all the control buttons are clear at a glance.
Adopt the gearbox with synchronizer, which is easy to operate.
The special compactor drive axle has the function of preventing slipping, featuring strong traction.
Reliable and durable hydraulic system
The standard configuration includes imported open gear pump and motor. The optional configuration includes closed hydraulic vibration system, imported piston pump, motor (16t, 18t). All those have a long service life, supplying stable start-oscillation and oscillation stop and high compacting quality.
Energy-saving and environmental friendly power
Shanghai Diesel Engine 114 series water-cooled engine has low noise, meeting the emission standard of European I. The maintenance-free battery can be started easily and work smoothly in low temperature.
Optional configuration
The integral convex block drum, split convex block drum, and the cab with air conditioning.
Convenient maintenance
The engine cover is easy to open, and the opening angle is large, which make the maintenance part accessible.
The high positioned air intake prolongs the maintenance interval of the air filter.

Working performance parameters
Static linear load	N/cm	362
Vibration frequency(L/H)	Hz	28
Nominal amplitude(High/Low)	mm	1.9/0.95
Excitation force(High/Low)	Kn	290/145
Drum width	mm	2130
Min ground clearance	mm	400
Driving performance parameters
Speed I	Km/h	2.54
Speed II	Km/h	4.97
Speed III	Km/h	10.51
Theoretical grade ability	%	30
Min. external turning radius	mm	6500
Steering angle	°	±33
Oscillating angle	°	±11
Basic parameter
Operating weight	Kg	16000
Weight on rear wheel	Kg	8300
Weight on front drum	Kg	7700
Overall size (LxWxH)	mm	6220x2340x3200
Engine
Engine model	SC8D156.2G2B1
Type	Water cooled, pressurized
Rated speed	r/min	1800
Rated power	Kw	115
Hydraulic oil tank capacity	L	170
Fuel tank capacity	L	240
