26t Tire Compactor / Road Roller XP261

FOB Price: Price can be negotiated
Min.Order: 1 Unit
Supply Ability: 49 Unit
Delivery time： 26 days

Product Description

uirements of compaction and site transfer, together with flexible electronic control operation and comfortable handfeel, greatly reduces the labor intensity of the drivers.
•Excellent performance
Adopting the pneumatic tyre to compact the layer will not damage the compacted materials. The compact performance can be improved by adding or reducing the counterweight and changing the inflation pressure of the tyres. Because of the kneading effect produced by the tyre's elasticity, the material displacement will be produced in all directions, forming even dense surface without cracks, which can prolong the service life of the road.
Adopt the front wheels swing mechanism. When the machine works on rough road, the mechanism ensures the even ground pressure, which can make the materials be compacted evenly.
The optional international leading infrared tyre heating system realizes the no water sprinkling work of the compactor, and improves the density and service life of the road.

arameterUnitXP261

Min. Working mass	kg	14500
Max. Working mass	kg	26000
Axle load,wheels	kg	4500
Static linear load	kg	7000
Theoretical gradeability	%	20
Min.outer turning radins	mm	9000
Min.ground clearance	mm	290
Overlapping of front&rear tyre	mm	50
Wwinging width	mm	±45
Compacting width	mm	2750
Rolling pressure	kPa	250~420
Centrifugal force(High/Low)	mm	3840
Speed	km/h	0~8
Speed	km/h	0~20
Size of tyre		11.00-20
Tires pattern		Smooth
Numbers of tyre		Front 5 Rear 6
Engine
model		D6114ZG10B
Rated speed	r/min	2000
Rated power	kw	115
Engine oil consumption	g/kW•h	224
Water tank capacity	L	4500
Hydraulic oil tank capacity	L	90
Fuel tank capacity	L	180

Product Images

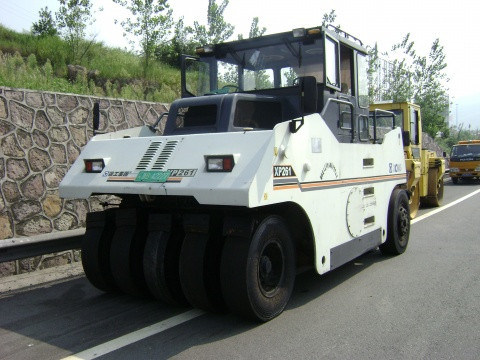

26t Tire Compactor / Road Roller XP261 Images 1
