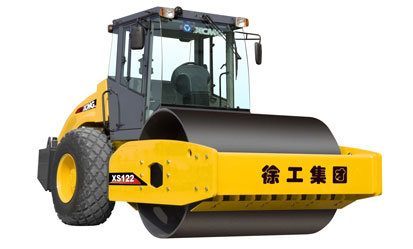

12tons Hydraulic Single Drum Vibratory Road Roller (XS122)

XS122 Hydraulic Single Drum Vibratory 12Ton Roller

XS122 12 Ton Roller:
Hydraulic vibratory rollers are suitable for compaction of non-cohesive materials such as gravel, crushed stone, sand-macadam mixture, sandy soil and rock filling etc. On base course, sub-base and embankment fill construction, which are ideal equipment for high-class highway, railway, airport, harbors, dams and large-scale industrial ground.

Future of XS122 12 Ton Roller:
Powerful Cummins diesel engine; Hydrostatic wheel &drum travel drive operated by asingle lever at two range infinitely variable speeds.
Adjustable frequency and amplitude vibration device with imported vibrating pump and motor.
Parking brake hydraulically mounted in central input of the driving axle with oil-cutoff braking for reliable safety.
Circle arc glasses cabin with air conditioner(option) and curve engine hood for unique streamline shape appearance
Engine mounted with backward power output and turnover engine hood allow easy access to the main hydraulic components.

Type	Unit	Specifications
Operating weight	kg	12000
Weight on front drum	kg	6700
Static linear load	N/cm	308
Speed range	km/h	0~10.4
Theoretical gradeability	%	45
Min. external turning radius	mm	6800
Steering angle	°	±30
Oscillating angle	°	±10
Vibration frequency(L/H)	Hz	30/35
Nominal amplitude(H/L)	mm	1.80/0.9
Excitation force(H/L)	kN	290/180
Drum diameter	mm	1523
Drum width	mm	2130
Engine model		Cummins4B3.9
Type		Water cooled, turbo-charged,air-air intercooling
Rated power @2200r/min	kW	93
