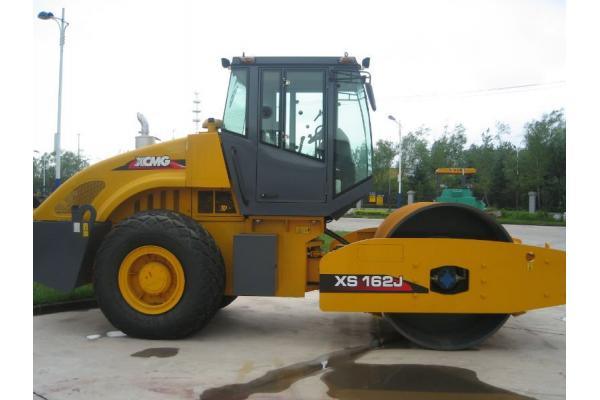

Construction Machine 16t Single Drum Vibratory Road Roller (Xs162j)

Construction Machine 16t Single Drum Vibratory Road Roller (Xs162j)

Basic parameter
1. Operating weight: 16000 Kg
2. Weight on rear wheel: 8300 Kg
3. Weight on front drum: 7700 Kg
4. Overall size (LxWxH): 6220x2340X3200 mm

Engine
1. Engine model: SC8D156.2G2B1
2. Type: Water cooled, pressurized
3. Rated speed: 1800 r/min
4. Rated power: 115 Kw
5. Hydraulic oil tank capacity: 170 L
6. Fuel tank capacity: 240 L

Working performance parameters:
Static linear load: 362 N/cm
Vibration frequency(L/H): 28 Hz
Nominal amplitude(High/Low): 1.9/0.95 mm
Excitation force(High/Low): 290/145 Kn
Drum width: 2130 mm
Min ground clearance: 400 mm

Driving performance parameters:
1. Speed I: 2.54Km/h
2. Speed II: 4.97Km/h
3. Speed III: 10.51Km/h
4. Theoretical grade ability: 30%
5. Min. External turning radius: 6500mm
6. Steering angle: ±33°
7. Oscillating angle: ±11°

Main specificaton of road roller:

Main specification: 1.Machinery single drum vibratory roller; 2.imported open gear pump and motor; 3.Without Air conditioner; 4.Shanghai Diesel Water-cooledengine 115kw EURO II;
Working performance parameters
Static linear load	N/cm	362
Vibration frequency(L/H)	Hz	28
Nominal amplitude(High/Low)	mm	1.9/0.95
Excitation force(High/Low)	Kn	290/145
Drum width	mm	2130
Min ground clearance	mm	400
Driving performance parameters
Speed I	Km/h	2.54
Speed II	Km/h	4.97
Speed III	Km/h	10.51
Theoretical grade ability	%	30
Min. external turning radius	mm	6500
Steering angle	°	±33
Oscillating angle	°	±11
Basic parameter
Operating weight	Kg	16000
Weight on rear wheel	Kg	8300
Weight on front drum	Kg	7700
Overall size (LxWxH)	mm	6220x2340x3200
Engine
Engine model	SC8D156.2G2B1
Type	Water cooled, pressurized
Rated speed	r/min	1800
Rated power	Kw	115
Hydraulic oil tank capacity	L	170
Fuel tank capacity	L	240

More earth moving machinery hydraulic loader.
1). Excavating machinery: Excavators
2). Construciton crane sector: Truck Crane /All Terrain Crane /Crawler Crane /Tower Crane
/ Truck Mounted Crane /Aerial work machinery
3). Road machinery sector: Paver /Mixer station /Milling machine /Mixing plant/Cold recycling
/Mixing station /Asphalt pavement /Road roller /Grader
4). Fire machinery: Fire truck
5). Mining engineering machinery: Mining truck /Roadheader
6). Agricultural equipment machinery: Mini-excavator /Backhoe loader
7). Sanitation construction machinery: Detachable container garbage collector /Compression refuse collector

More information, please contact with Ady yan at any time, thanks!
