China Xy-2b Xyt-2b 300m Drilling Machine

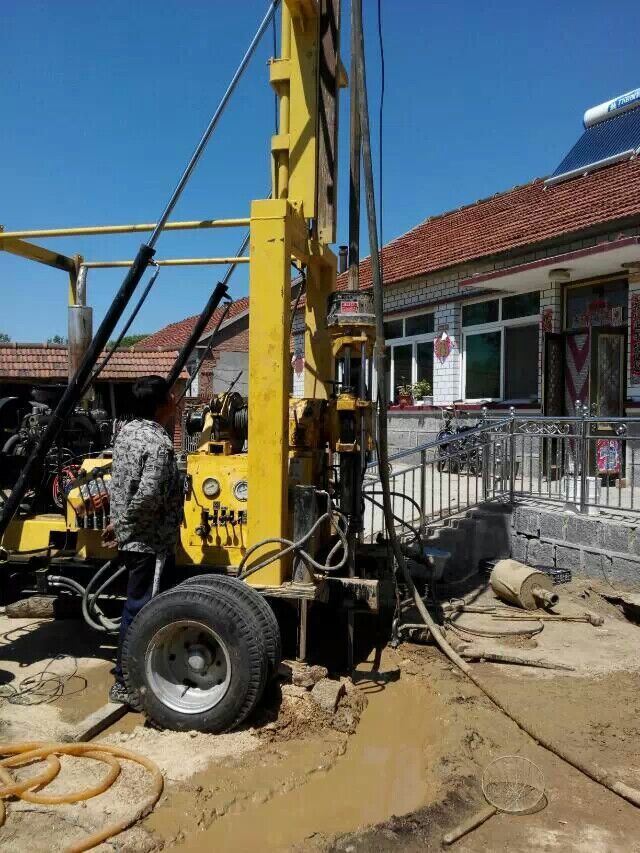

The XY-2B type drilling rig is ahydraulic vertical drilling rig, which can be used as adiesel engine or motor as power. This drilling machine is mainly used for diamond drilling and hard alloy drilling in solid deposits. At the same time, it can be used in engineering geological exploration drilling and pile hole drilling.

Our products are sold at home and abroad, with lower price and reliable quality are welcomed by African customers .

The depth of drilling is 300 meters.

The technical features of the product:

1. The mechanical transmission structure is tightened and the weight is light.
2.The vertical shaft diameter of the gyreator is large, the support distance is large and the Riger has agood rigidity.

3.The diameter shaft of the Datong hole is fitted with six party active drill rods to ensure the transmission of torque.

4.Drilling machine has high speed and reasonable speed range, can meet small caliber diamond drilling, large caliber hard joint drilling and various engineering holes drilling.
5.In the process of control and feeding, the hydraulic system can adjust the inlet pressure and adjust the feed speed to meet the drilling needs of different strata.
6.With the bottom hole pressure indicator, it is easy to master the pressure in the hole.
7.The transmission and clutch of the automobile are used in general and easy to be repaired.
8.The handle is fewer, concentrated, and easy to operate.

1.Drilling Depth(m)	φ76 mm	300
	φ219mm	150
	φ500mm	50
Drilling diameter(mm)		50,60
Drilling angle(°)		70-90
Overall Size(mm)		2500x1100X1700
Weight(Kg)	Electric motor	1550
	Power unit	1450
2.Gyrator
Spindle Speed(r/min)	Forward	70,146,179,267,370,450,677,1145
	Reversal	62,157
Shaft run(mm)		550
Hoisting capacity(KN)		68
Vertical feeding capacity(KN)		46
Max working torque(Nm)		2550
3.Winding engine
Hoisting speed(m/s)		0.64, 1.33, 2.44
capacity(KN)		25, 15, 7.5
Diameter of wire rope(mm)		15
Drum diameter(mm)		200

Braking wheel diameter(mm)		350
Brake band width(mm)			74
4.Drilling shifter
Switching itinerary(mm)			420
Distance(mm)			300
5.Oil pump
Model			CB-25
Certified capacity(L/min)			40
Rated pressure(MPa)			8
6.Drilling Power	Diesel engine		N485Q
	Rated powerKW		24.6
	Rated speedr/min		1800
	Electric motor		Y180L-4
	Rated powerKW		22
	Rated speedr/min		1450
