13 Ton Jcm Crawler Excavator (913D)

  • 13 Ton Jcm Crawler Excavator (913D)
  • Price can be negotiated
  • 1 Unit
  • 86 Unit
  • 19 days
Contact Supplier
Product Description
13 Ton JCM Crawler Excavator (913D)JCM913D Hydraulic Crawler Excavator's Operating Weight is 12.8t, equipped with CUMMINS B3.9-C Engine, with Boom 4.6m, Arm 2.5m, Bucket 0.55m3.

Notice: only after getting the permission of our company that the optional or special parts can be installed on the machine.

Company instruction:
Jinan Shanglong International Trade Co., Ltd is located in Jinan, shandong Province, China. With more years development, we specializes in exporting SINOTRUCK series trucks, such as tipper, tractor, mixer, Cargo truck, special-using truck, semi-trailer and spare parts.

ZOOMLION series construction machinery such as truck cran, wheel loader, excavator, compactor, road rooler, pump truck and spare parts. Now in the international construction lifting machinery industry, their output and sales rank top and its economic scale and competitive benefits rank top, too.
We have been exporting trucks and construction machinery to many countries across the world. The products that we offered have attained many certifications, such as: ISO9001, ISO14001, CE, EU, GOST and enjoy a high reputation for their quality and competitive price.
We are the specialized wheel loader supplier in China. With high reputation and competitive price. Welcome your inquiry at any time. Check www.chn-truck.com for more info.
EngineTravel System
ModelCUMMINS B3.9-CTravel motorsDOOSAN/NABTESCO; Variable axial piston motor
TypeWater cooling, turbocharged, empty enter-coolingSupport roller quantities2×7
Carrier roller quantities2×1
No. of cylinder4Travel shoes2×44
Bore and stroke102mm×120mmTravel speed3.59/5.57km/h
Displacement3.9LDrawbar pulling force98kN
Power output86kW/2200rpmGrade ability70% (35°)
Ground clearance425mm
Hydraulic SystemCab & Control
PumpKAWASAKI, JapanCabAll-weather, sound-suppressed Cab and equipped with a heavy, insulated Floor Mat; Front Window can be opened and slid; 6-direction adjustable Seat; LED display, Automatic monitoring, display and warning; cool & hot Air Conditioner
Typevariable double-piston pump
Max. discharge flow2×108L/min
Max. discharge pressure
Boom, arm and bucket31.9MPaControlTwo hand levers and two foot pedals for travel Two hand levers for excavating and swing;
Electric rotary-type engine throttle
Travel circuit31.9MPa
Swing circuit25.5MPa
Control circuit3.9MPaBoom, Arm & Bucket
Pilot control pumpGear typeBoom cylinder105mm×70mm×980mm
Main control valveNegative flow controlArm cylinder115mm×80mm×1175mm
Oil coolerAir cooled typeBucket cylinder95mm×65mm×885mm
Swing SystemRefilling Capacities & lubrications
Swing motorKAWASAKI, JapanFuel tank238L
Swing motor typeAxial-piston motorCooling system20L
BrakeHydraulic oil releasedEngine oil15L
Parking brakeHydraulic disc brakeHydraulic oil tank120L Tank oil level
Swing speed12.6r/min208L Hydraulic system
Bucket
TypeBackhoe bucket
Bucket capacity0.55m 3 (SAE)
Bucket width980mm

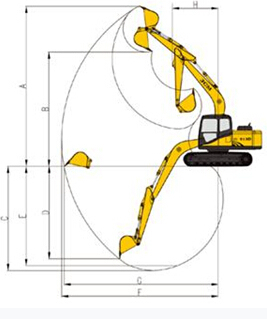

Arm Type
AMax. digging depth8495mm
BMax. dumping height6065mm
CMax. digging height5537mm
DMax. vertical digging depth4907mm
EMax. Depth cut for 2440m(8')Level Bottom5275mm
FMax. digging distance8297mm
GMax. digging radius at ground level8168mm
HMin. swing radius of work equipment2426mm
Digging Force (ISO6015) Unit: kN
Arm length2500mm
Bucket digging force73.5kN
Arm digging force60.8kN
Arm Type2500mm
AOverall length7718mmITread2925mm
BGround contact length (Transportation)4209mmJTrack length3659mm
COverall height(to top of boom)2674mmKTrack gauge2000mm
DOverall width2500mmLTrack width2500mm
EOverall height(to top of cab)2752mmMShoe width500mm
FCounter weight ground clearance912mmOBonnet height2145mm
GGround clearance425mmPRevolving frame width2490mm
HTail swing radius2318mmQDistance from swivel center to tail2318mm
Operating Weight and Ground Pressure
Operating weight includes basic machine (with boom 4.6m, arm 2.5m, and bucket 0.55m 3 )
Shoe width500mm
Overall width2500mm
Ground pressure39KPa
Operating weight12800kg
13 Ton Jcm Crawler Excavator (913D)
13 Ton Jcm Crawler Excavator (913D)
Product Images
13 Ton Jcm Crawler Excavator (913D) Images 1
