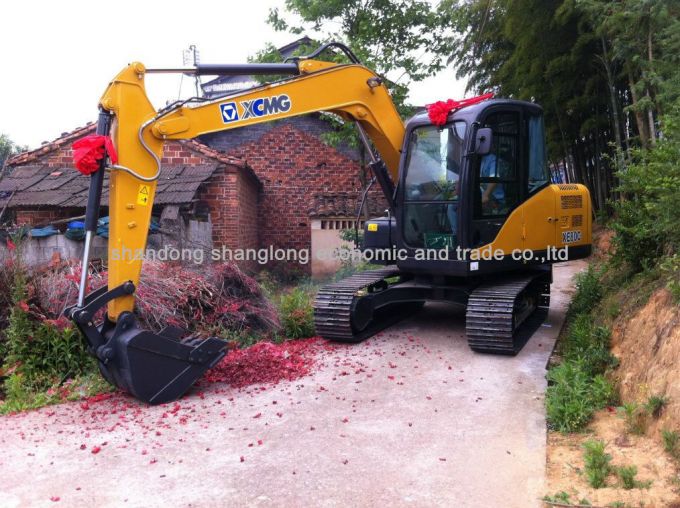

China Micro 0.3m3 Excavator 8ton Mini Excavator

China Micro 0.3m3 Excavator 8ton Mini Excavator

1. The excavator is equipped with ISUZU engine (original), with big power, low noise, low fuel consumption and hasstrongereconomy.
The critical parts are international brand, using latest technology with lower consumption and fast response speed. Maintain a strong ability and excellent efficiency of mining.
2. The new comfortable cabin with suspension seat. Easily operate.
3. The filter is on the right side of the door. It's convenient to check and replace the filter.


Main parameter

Operating weight: 7460 kg
Standard bucket capacity: 0.3 m³
Overall size: 6144x2272x2682 mm
Crawer width: 450 mm
Crawer gauge: 1750 mm
Clearance under counterweight: 797 mm
Ground clearance: 393 mm

Engine

Engine model: ISUZU engine, 4JG1TPC
Rated power/speed: 53.8/2150 kw/rpm

Working range

Max. digging height: 7135 mm
Max. dumping height: 5030 mm
Max. digging depth: 4130 mm
Max. vertical wall digging depth: 3485 mm
Max. digging reach: 6295 mm
Boom length: 3720 mm
Arm Length: 1622 mm

Main parameter
Operating weight	kg	7460
Standard bucket capacity	m³	0.3
Overall size	mm	6144x2272x2682
Crawer width	mm	450
Crawer gauge	mm	1750
Clearance under counterweight	mm	797
Ground clearance	mm	393
Engine
Engine model		ISUZU engine, 4JG1TPC
Rated power/speed	kw/rpm	53.8/2150
Max. torque/speed	N.m	255/1800
Displacement	L	3.059
Main performance
Travel speed	km/h	4.4/2.4
Swing speed	r/min	11
Max. grade ability	/	35°
Ground pressure	kPa	33.5
Max. Bucket digging force	kN	51.2
Max.arm crowd force	kN	34.2
Max traction force	kN	68.5
Working range
Max. digging height	mm	7135
Max. dumping height	mm	5030
Max. digging depth	mm	4130
Max. vertical wall digging depth	mm	3485
Max. digging reach	mm	6295
Boom length	mm	3720
Arm Length	mm	1622
