Jcm 36 Tons Big Crawler Excavator for Sale (936D)

  • Jcm 36 Tons Big Crawler Excavator for Sale (936D)
  • USD 155000.16 /Unit
  • 1 Unit
  • 25 Unit
  • 14 days
Contact Supplier
Product Description
JCM 36 Tons Big Crawler Excavator For Sale (936D)
Our products have been widely used in the field of defense engineering, mine construction, road building, and farmland improvement, and have enjoyed great popularity in the world market. We have been exporting our products to many countries across the world and the products that we offer have attained many certifications, and enjoy a high reputation for their high quality and competitive price.
EngineTravel System
ModelCUMMINS 6C8.3Travel motorsNabtesco, Japan; Variable axial piston motor
O&K, Germany; Variable axial piston motor
TypeWater cooling, turbocharged, empty enter-coolingSupport roller quantities2×8
Carrier roller quantities2×2
No. of cylinder6Travel shoes2×49
Bore and stroke114mm×135mmTravel speed2.95/5.04km/h
Displacement8.3LDrawbar pulling force284kN
Power output186kW/2200rpmGrade ability70% (35°)
Ground clearance565mm
Hydraulic SystemCab&Control
PumpFLUTEK, KoreaCabAll-weather, sound-suppressed Cab and equipped with a heavy, insulated Floor Mat; Front Window can be opened and slid; 6-direction adjustable Seat; LED display, Automatic monitoring, display and warning; cool & hot Air Conditioner
Typevariable double-piston pump
Max. discharge flow2×265L/min
Max. discharge pressure
Boom, arm and bucket32.5MPaControlTwo hand levers and two foot pedals for travel Two hand levers for excavating and swing;
Electric rotary-type engine throttle
Travel circuit32.5MPa
Swing circuit27.5MPa
Control circuit3.9MPaBoom, Arm&Bucket
Pilot control pumpGear typeBoom cylinder140mm×100mm×1480mm
Main control valveNegative flow controlArm cylinder160mm×110mm×1825mm
Oil coolerAir cooled typeBucket cylinder150mm×105mm×1250mm
Swing SystemRefilling Capacities&lubrications
Swing motorSUNJIN, KoreaFuel tank600L
Swing motor typeAxial-piston motorCooling system25L
BrakeHydraulic oil releasedEngine oil20L
Parking brakeHydraulic disc brakeHydraulic oil tank375L Tank oil level
Swing speed10.5r/min500L Hydraulic system
Bucket
TypeBackhoe bucket
Bucket capacity1.6m3(SAE)
Bucket width1551mm
Arm Type
AMax. digging depth10164mm
BMax. dumping height7121mm
CMax. digging height7301mm
DMax. vertical digging depth7000mm
EMax. Depth cut for 2440m(8')Level Bottom7121mm
FMax. digging distance11084mm
GMax. digging radius at ground level10886mm
HMin. swing radius of work equipment4335mm
Digging Force (ISO6015)Unit: kN
Arm length3186mm
Bucket digging force207.5kN
Arm digging force154.4kN
Arm Type 3186mm
AOverall length11161mmITread4080mm
BGround contact length (Transportation)5856mmJTrack length5044mm
COverall height(to top of boom)3347mmKTrack gauge2600mm
DOverall width3200mmLTrack width3200mm
EOverall height(to top of cab)3211mmMShoe width600mm
FCounter weight ground clearance1310mmOBonnet height2752mm
GGround clearance565mmPRevolving frame width3165mm
HTail swing radius3438mmQDistance from swivel center to tail3438mm
Operating Weight and Ground Pressure
Operating weight includes basic machine (with boom 6.47m, arm 3.186m, and bucket 1.6m3)
Shoe width600mm
Overall width3200mm
Ground pressure66.2KPa
Operating weight35700kg
More information,please contact Ady yan at any time.
+86 186 53113471
Product Images

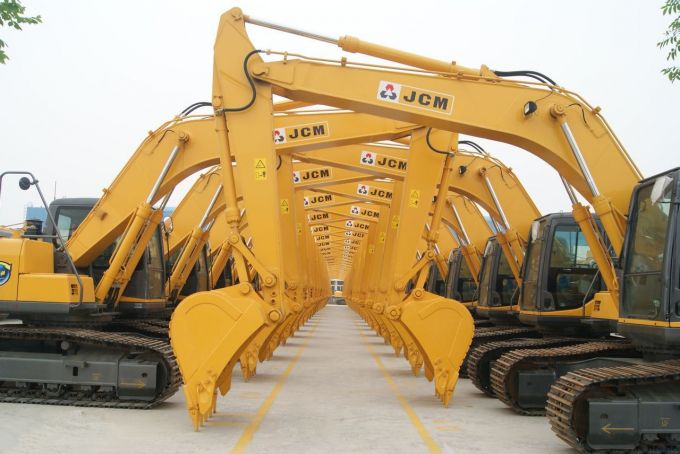

Jcm 36 Tons Big Crawler Excavator for Sale (936D) Images 1
