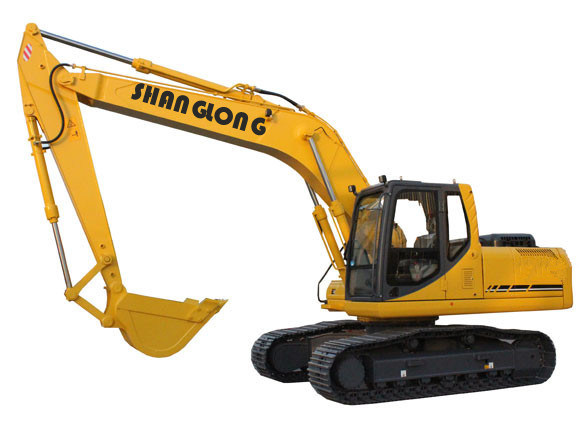

Cummins Engine 35 Tons Excavator (SC360.8LC)

CUMMINS 6CTAA8.3 Engine 35 Tons China Cheap Excavator

Our products have been widely used in the field of defense engineering, mine construction, road building, and farmland improvement, and have enjoyed great popularity in the world market. We have been exporting our products to many countries across the world and the products that we offer have attained many certifications, and enjoy a high reputation for their high quality and competitive price.

Model	Unit	SC360.8LC
Weight	(T)	34.6
Bucket capacity	(m 3 )	1.6-1.8
Engine model		CUMMINS 6CTAA8.3
Power	(kw/r/min)	198/2000
Fuel tank capacity	(L)	595
Travel speed	(km/h)	5.2/3.3
Slewing speed	(r/min)	10.6
Gradeability	(%)	70
Bucket digging force	(KN)	208
Ground pressure	(KPa)	62.8
Hydraulic pump model		K3V140DT
Max. flow	(L/min)	265*2
Work pressure	(MPa)	34.3
Hydraulic tank volume	(L)	310

Dimension:

Overall length	(mm)	11080	11080
Overall width	(mm)	2995	2995
Overall height	(mm)	3180	3180
Overall height	(mm)	3280	3280
Ground clearance (counterweight)	(mm)	1210	1210
Min. ground clearance	(mm)	498	498
Tail slewing radius	(mm)	3420	3420
Ground contact length of track	(mm)	3700	4030
Track length	(mm)	4622	4622
Track gauge	(mm)	2590	2590
Track width	(mm)	3190	3290
Track plate width	(mm)	600	700
Width of ratory table	(mm)	2995	2995

Operation Scope:

Max. digging height	(mm)	10200	10200
Max. dump height	(mm)	7135	7135
Max. digging depth	(mm)	7370	7370
Max. vertical digging depth	(mm)	6380	6380
Max. digging depth when digging a 2.5m surface	(mm)	7190	7190
Max. digging distance	(mm)	11100	11100
Max. digging distance on ground	(mm)	10910	10910
Min. slewing radius	(mm)	4265	4265
Max. height at min. slewing radius	(mm)	8500	8500
slewing center to rear end	(mm)	3420	3420
Grouser thickness	(mm)	30	30
Counterweight height	(mm)	2265	2265
Ground contact length(transport)	(mm)	5720	5720
Arm length	(mm)	3185	3185
Boom length	(mm)	6470	6470
