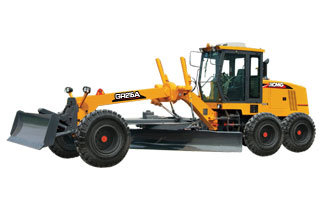

215HP New Grader for Hot Sale (GR215)

215HP New Grader For Hot Sale(GR215)
Company instruction of Construction Machinery:

Jinan Shanglong International Trade Co., Ltd is located in Jinan, shandong Province, China. With more years development, we specializes in exporting SINOTRUCK series trucks, such as tipper, tractor, mixer, Cargo truck, special-using truck, semi-trailer and spare parts.

Construction machinery such as truck cran, wheel loader, excavator, compactor, road rooler, pump truck and spare parts. Now in the international construction lifting machinery industry, their output and sales rank top and its economic scale and competitive benefits rank top, too.

We have been exporting trucks and construction machinery to many countries across the world. The products that we offered have attained many certifications, such as: ISO9001, ISO14001, CE, EU, GOST and enjoy a high reputation for their quality and competitive price.

Basic specification
Engine model	6CTA8.3
Rated power/speed	160kW/2200rpm
Dimension(LxWxH)	9105×2625×3470mm
Operating weight(Standard)	16500kg
Performance specification
Travelling speed ,forward	5811162638 km/h
Travelling speed ,reverse	5811162638 km/h
Tractive force(f=0.75)	98KN
Max. gradeability	20%
Tire inflation pressure	260 kPa
Working hydraulic pressure	16 MPa
Transmission pressure	1.3~1.8MPa
Operating specification
Max. steering angle of front wheels	±50°
Max. lean angle of front wheels	±17°
Max. oscillation angle of front axle	±15°
Max. oscillation angle of balance box	15
frame articulation angle	±27°
Min. turning radius using articulation	7.3m
Blade
Maximum lift above ground	450mm
Maximum depth of cutting	500mm
Maximum blade position angle	90°
Blade cutting angle	28°_70°
Circle reversing rotation	360°
Moldboard width X height	4270×610mm
