Gr100 Motor Grader

  • Gr100 Motor Grader
  • USD 15000.50 /Unit
  • 1 Unit
  • 93 Unit
  • 14 days
Contact Supplier
Product Description
Basic specification
Engine model4BT3.9
Rated power/speed75/2400kw/rpm
Dimension(LxWxH)6880×2375×3150mm
Operating weight(Standard)7000kg
Performance specification
Travelling speed ,forward5102039km/h
Travelling speed ,reverse825km/h
Tractive force(f=0.75)41.6KN
Max. gradeability20%
Tire inflation pressure350KPa
Working hydraulic pressure16MPa
Transmission pressure1.3~1.8MPa
Operating specification
Max. steering angle of front wheels±50°
Max. lean angle of front wheels17°
Max. oscillation angle of front axle±15°
Max. oscillation angle of balance box
frame articulation angle±27°
Min. turning radius using articulation5.9m
Biade
Maximum lift above ground300mm
Maximum depth of cutting350mm
Maximum blade position angle45°
Blade cutting angle28°_70°
Circle reversing rotation120°
Moldboard width X height3048×500mm
Product Images

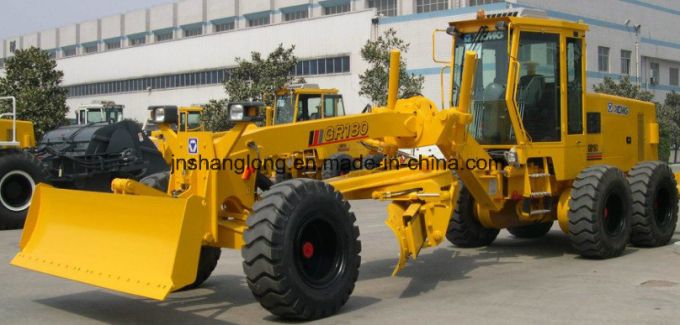

Gr100 Motor Grader Images 1
