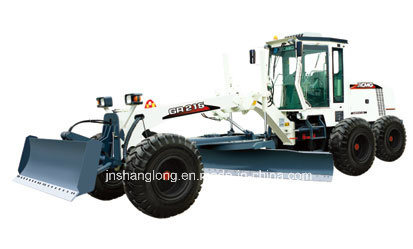

215HP Motor Grader Gr215

16 ton Motor Grader X-CMG GR215 215HP Cummins Engine

1)New appearance.
2)The adopted articulated frame assists the front wheel to steer, featuring small turning radius and flexibility.
3)Electro-hydraulic controlled brake power shift gearbox includes 6 Forward gears, and 3 Reverse gears.
4)The adopted international matched hydraulic parts ensure the reliable operation.

5)The blade movement is hydraulic controlled fully.
6)The rear axle is three-way drive axle with NO-SPIN self -locking differential.
7)The reasonable distribution of the adjustable operation panel, seat, lever and instrument guarantees the comfortable and convenient operation.
8)The luxury and beautiful cab features wide visibility and good sealing.
9)The machine can be equipped with front bulldozing plate, rear scarifier, front harrow and auto-leveling system.

CategoryItemsValue
Engine model: Cunmmins 6CTA8.3
Rated power/speed: 160kW/2200rpm
Overall dimension: 8970x 2625x 3470mm
Operating weight: 16500kg
Operating weight on front wheel: 4950kg
Operating weight on rear wheel: 11550 kg
Min. Grounding clearance: 430 mm
Clearance between front and rear axle: 6219 mm
Clearance between middle and rear wheel: 1639 mm
Min. Turning radius: 7.3 m
Max. Traction force: 87 kN
Max. Climb ability: 20 %
Max. Lifting height: 460mm
Max. Digging Depth: 500 mm

Engine rated power/rev	160kW/2200rpm
Dimension	8970x2625x3470mm
Weight	16500kg
Distribution weight of front wheel	4950kg
Distribution weight of rear wheel	11550kg
Min. clearance	430mm
Front and rear axle clearance	6219 mm
Front and rear axle clearance	1639mm
Max. steering angle of front wheel	± 50°
Max. inclination angle of front wheel	± 17°
Max. swing angle	± 15°
frame steering angle	± 27°
Min. turning radius	7.3m
Traction	≥ 87kN
Gradeability	20%
Forward speed	5, 8, 11, 19, 23, 38 km/h
Reverse speed	5, 11, 23 km/h
Blade
Max. lifting height	460mm
Max. Digging Depth	500mm
Max. inclination angle	90°
Cutting angle	28° _ 70°
Rotating angle	360°
Blade length × arc height	4270× 610mm
