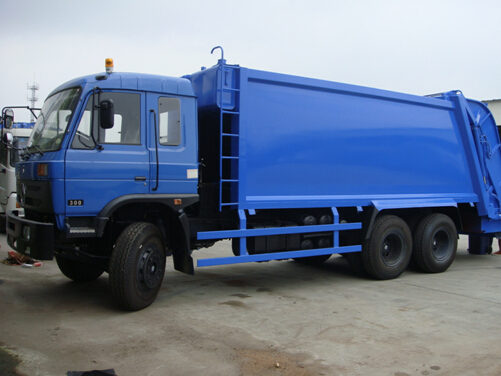

Donfeng 6X4 18m3 Compressed Garbage Truck

DonFENG 6X4 18m3 Compressed Garbage Truck

Main Technical data:

Items	Descriptions	Specifications and Types
General	Truck Name	Garbage Compactor truck
	Drive Type	6*4
	Loading Capacity (kg)	12000
	Curb Weight (kg)	14990
	Approx. Overall Dimensions(mm)	10300*2500*3300
Engine	Engine Model	B210 33
	Engine Brand	Cummins
	Fuel Type	Diesel
	Power	155kw/210HP
	Emission Standard	Euro III
	Displacement(ml)	5900
Chassis	Chassis Brand	DONGFENG
	Wheelbase (mm)	4350+1300
	Axle No.	3
	Tire No.	10
	Tire Specification	10.00R20 steel tire
	Steering Wheel	Left Hand Drive with power-assisted
	Gear Box	8 speed forward with 1 reverse, manual
	Brake	Air brake
	Radiator	Suitable for tropical climate
Garbage Container	Container Volume(m3)	18
	Container Material	Q345, side 4mm, bottom5mm
	Pre-compressor Volume(m3)	1.2
	Sewage tank volume(L)	200
Others	Compression cycle time(s)	30
	Unload garbage time(s)	40
Remarks	1.With completely sealed garbage container, hydraulic system, operation system. 2.Equipped with rear turnover mechanism, can hook dustbin or loading garbage by itself. 3.Equipped screeds and push shovel, compress by itself. High compression ratio. 4.The sewage will flow to sewage tank automatically, avoid second pollution. 5.Good sealed performance, easily operation, high safety.
