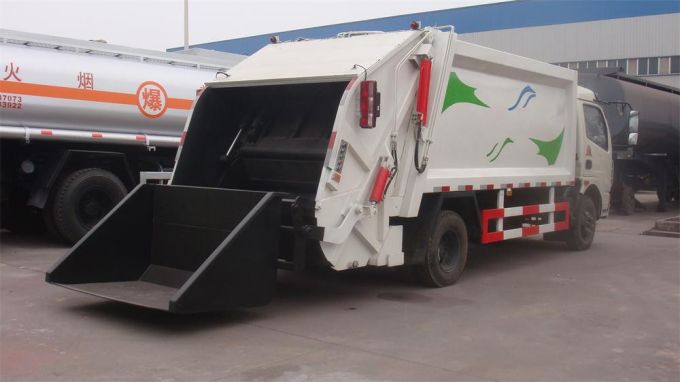

China 4X2 5cbm Compressed Garbage Truck with 120HP

Introduction

We are a professional manufacturer and exporter that is concerned with the design, development and production of special trucks, including LPG Trucks,Sewage Suction Truck, cement mixer trucks, Water Trucks, Refrigerator trucks, Cargo trucks,Garbage Truck, Oil Tanker Truck,wrecker towing truck, Truck Mounted Crane and others.

other product we can offer

1.WaterTanker/SprinklerTruck/PesticideSprayingTruck/DustRemovableTruck
2.GarbageTruck/GarbageCompactor/SealedGarbageTruck/SkipLoader/Self-loader/Butt-typeGarbageTruck/HookLoader
3.SewageSuctionTruck/FecalSuctionTruck/SewerCleaningTruck
4.AerialWorkingTruck/CraneTruck
5.RoadWrecker
6.RoadSweeper
7.Oiltanker/RefuellingTruck
8.LPGStorageTanker
9.ChemicalLiquidTanker
10.BulkCementTanker
11.MilkTransportTruck
12.ConcreteMixer/ConcretePumpTruck
13.TractorHead
14.AsphaltDistributor
15.FireFightingTruck
16.VanTruck/RefrigeratorTruck/ExplosionProofTruck
17.MobileStageTruck/LEDAdvertisingTruck
18.DumpTruck/Tipper
19.FeedDeliveryTruck
20.Semi-trailer/FlatbedSemi-trailer/ContainerSemi-trailer/SkeletonSemi-trailer/LowflatbedSemi-trailer/StakeSemi-trailer

Main specifications
Product model,name		Compression Garbage Truck
Driving type		4*2
Overall dimension	mm	6450*2050*2500
Gross weight	Kg	6495
Payload	Kg	1000
Curb weight	Kg	5365
Cab seats	man	2
Approach/departure angle	°	19/10
Axle No.		2
Axle load (front/ rear)	Kg	2570/3925
Front/rear hang	mm	1032/2118
Wheelbase	mm	3300
Max speed	Km/h	95
Chassis specifications
Chassis model			EQ1060TJ20D3
Manufacture			Dongfeng automobile company
Overall dimension	mm		5820*1940*2080
Tire specification			7.00-16, 6+1
Front/ Rear track	mm		1506/1466
Steel spring number			8/9+5
Gear box			5 forward
Cab	Flat single cab, luxurious interiors and seats, air conditioning is optional
Engine
model	CY4102-C3F
Fuel type	Diesel
Engine manufacture	Dongfeng chaoyang chaochai power co.,ltd
Displacement	ml		3856
Power	Kw		70
Emission standard	Euro 3
Performance
Body capacity	m3		4/5
Hopper capacity	m3		0.8
Compression cycle time	s		30
Unload garbage time	s		40
Control system	Manual +Automatic

Welcom to inquire.
