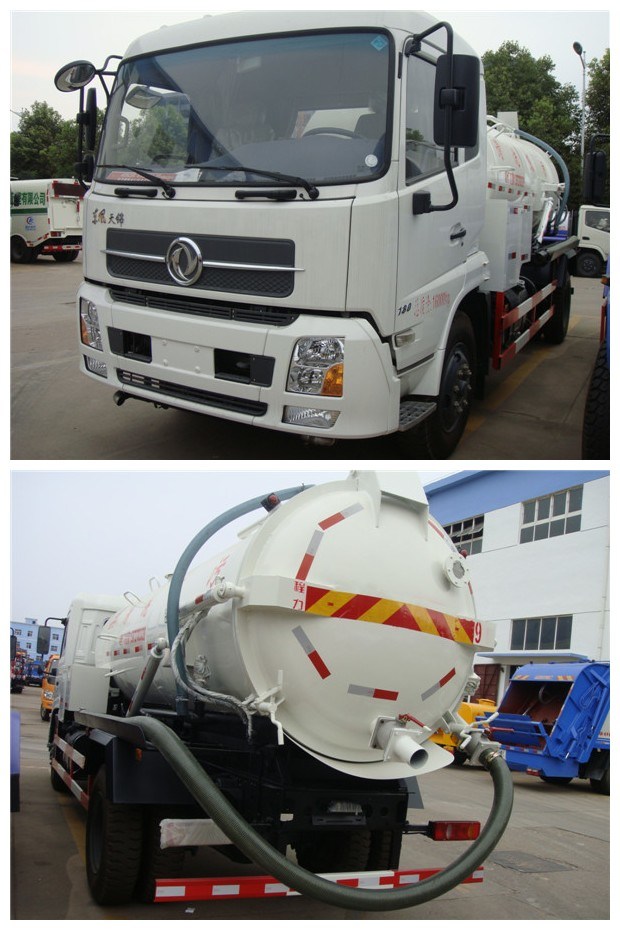

Vacuum Suction Sewage Truck with 4000L Capacity

Introduction

1.We can supply all brands of special trucks, such asnorth Benz(beiben), Faw, Foton, Shacman, Sinotruck, JAC, Jmc, Dongfeng, Sintruk.
2. The drive type could be4X2, 4X4, 6X2, 6X4, 6X6, 8X4
3. We can provideLHD (left hand drive) or RHD (right hand drive)vehicles.
4. Our products are Widely used inchemical enterprise, oil depot, storehouse, shop and terminal market.

Sludge suction truck is mainly used forsuction, transportation and discharge of sewage from septic tank and sludge from drains.Widely used by municipal environment and sanitation department and residential management.

Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck Mounted Crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water Truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )


Spec

ProductName	SewerVacuumSuctionTruck	OverallDimension(mm)	5995x2000x2550
GrossVehicleWeight(Kg)	6495	Factload(kg)	4000
CurbWeight(Kg)	4385	CabAllowedPersons	3
Appr/DepAngle(°)	19/14	F/RSuspension(mm)	1032/1663
AxleNo.	2	Wheelbase(mm)	3300
AxleLoad(Kg)	2805/3690	MaxSpeed(Km/h)	90
Others		EquippedwithPTO,VacuumPump,PipeSystem,HydraulicSystem, Valves,water-gasseparator,oil-gasseparator,levelinspectionwindow,etc.
[ChassisTechnicalParameters]
ChassisModel	EQ1060TJ20D3	ChassisBrand	Dongfeng
Appr/DepAngle(°)	19/15	TyreNo.	6
SpringLeafNo.	8/9+5	TyreSpecification	7.00-16
F/RSuspension(mm)	103 2/1488	AxleLoad(kg)	2595/3900
FrontTrack(mm)	1506	RearTrack(mm)	1466
FuelType	Diesel	EmissionStandard	EuroIII
Gearbox	5speedforwardwith1reverse	Brake	Airbrake
SteeringWheel	RHD	DriveType	4x2
EngineModel	CY4102-C3F	EngineBrand	Chaoyang
EnginePower	95hp/70kw	Displacement(ml)	3856
[SuperstructureTechnicalParameters]
TankVolume(L)	3000	TankMaterial	CarbonSteel
TankThickness(mm)	5	TankShape	Cylindrical

Welcom to inquire!
