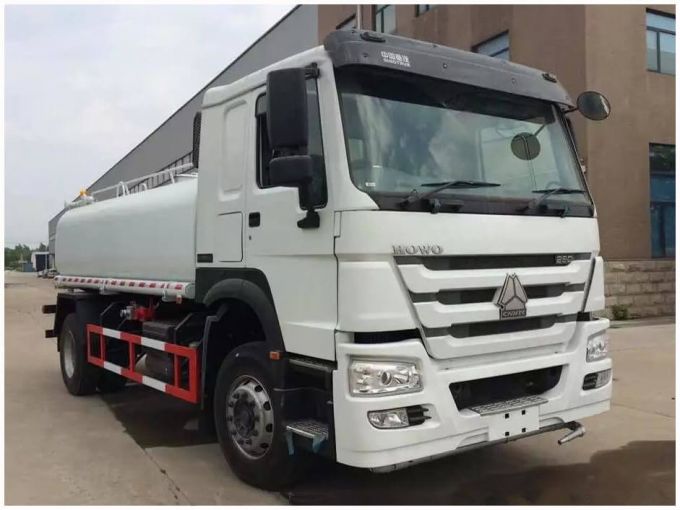

HOWO 4X2 Water Tank Truck

Contact Information


Lewis Liu
Foreign Trade Salesman

Mobile:+86-137 9111 8265



If you are interested in our trucks, please feel free to contact me at any time.
Welcome to vist our factory!
Add: D2601, Donghuan International Plaza, Jinan, China
Fax:+0531-83532996
Zip/Postal Code 250031


Specifications

Chassis Model	ZZ1257N4641W
Driving Type	4X2,6X4,8X4
Cabin	HW76, with one sleeper and two seats, double arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with four piont support floating suspension+shock absorber.
Engine	Make: SINOTRUK Diesel 4-stroke direct injection diesel engine Engine model: WD615.69, 336 HP; WD615.47, 371HP ;WD615.87,290HP; Emission :Euro 2 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 9.726 L
Transmission	HW19710, 10F &2R with PTO
Steering	ZF power steering, modol ZF8118, hydraulic steering with power assitance
Front Axle	HF9,1x9000 KGS Steering with doubleT-cross section beam
Rear Axle	HC16, 2x16000 KGS Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles. Ratio:4.42
Propeller Shaft	Double universal joint propeller shaft with gear-shaped coupling flange
Chassis	frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer
Brake	Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake
Electrics	Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tyres	315/80R22.5, tubless tires with one spare tire
Fuel Tank	400L
Tank Body	Volume 20CBM, Side 5mm, Cover 6mm, with front and rear sprinkler system;
Overall Dimension	10450*2550*3350mm
