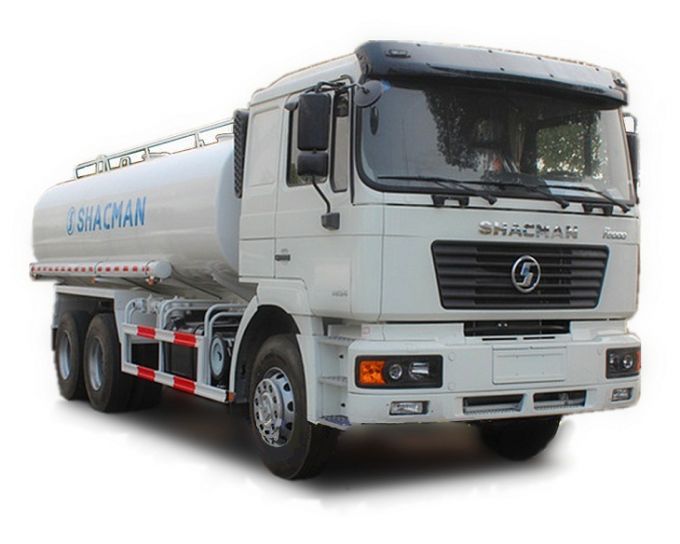

Shacman 20m3 6X4 LHD Water Tanker Truck (SX5255GSSDN464)

SHACMAN 20m3 6x4 LHD Water Tanker truck

1. Chassis model: SX1254JM464;
2. Drive System: 6x4;
3. Overall Dimensions: 9935x 2490x 3210mm;
4. Tank volume: 20000L;
5. Cab: F2000 mid-long flat roof cab, single bed, A/C, manual window machine;
6. Engine: WD615.50( WEICHAI ), EUROII emission standard;
7. Horsepower: 290HP;
8. Gearbox: FAST Fuller 9JS119, 9+1 shifts;
9. Clutch: 430 Diaphragm type;
10. Steering: ZF technology;
11. Front axle: MAN 7.5T with drum brake;
12. Rear axle: 13Ton STR casting axle, final ratio 5.73
13. Tyre: 12.00-20;
14. Oil tank: 380L.
15. With power takeoff

Name of Commodity			Sprinkler Truck
Brand			SHACMAN
Model			SX5255GSSDN464
Emission standard			Euro II
Driving type			6x4
Tank volume			20000L
Chassis	Cab		MAN F2000 mid-long flat roof cab, single bed, A/C, manual window machine
	Curb mass (kg)		11880
	Total mass(kg)		25000
	Appearance dimensions (mm)	Max. Length	9935
		Max. Width	2490
		Max. Height	3210
	Wheel base (mm)		4600+1350,4575+1400
	Overhang(front/rear)		1525/2460
	Track width (mm) (front/rear)		2036/(1800/1800,1860/1860)
	Max. speed (km/h)		99
	Engine		WP10.270E32
	Rated power(kw/hp)		198/270
	Clutch		430 Diaphragm spring Type
	Gearbox		FAST Fuller 9JS119, 9+1 shifts
	Front axle		MAN 7.5T with drum brake
	Driving axle		STR 13Tx2, double reduction axle
	Transmission ratio		4.8
	Steering		ZF technology(LHD)
	Tyre		12.00-20
	Leaf spring		Multiple leaf spring of front and rear
	Fuel tank		300L aluminum alloy diesel tank
Tank	Configuration		Self suction water pump SCB80/60, fire joints, gravity flow valve, sprinkler gun, front, rear and front side blow head, 4mm Q235 steel of water tank
	Volume(L)		20000
	Sprinkling width(m)		6-16
	Sprinkling speed(km/h)		5-10
	Sprinkling volume(L/m²)		0.5-1.5
	Water pump model		80QZB
	Rate of flow(L/min)		1000
	Spitting volume(L)		≥35
	Absorbing depth(m)		≥6
