HOWO Heavy Wrecker Truck Removal Truck with 40ton Lifting Capacity

HOWO Heavy Wrecker Truck Removal Truck with 40ton lifting capacity

I---Detailed information

General
Truck Name	Wrecker Truck (haul and lifting is separated)
Drive Type	8*4
Overall Dimensions L*W*H(mm)	11000x2500x3480
Engine
Engine Brand	SINOTRUK
Fuel Type	WD 615.69, Diesel
Power	336HP/247KW
Emission Standard	Euro 2
Displacement(ml)	9726
Engine Type	6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling
Chassis
Chassis Brand	SINOTRUK
Tire No.	12
Tire Specification	12.00-20 bias tire
Wheelbase (mm)	1800+4600+1350
Axle No.	4
Gear Box	HOWO 12 speed forward with 2 reverse, manual
Brake	Air brake
Cab	Long cab with air conditional
Towing
Type	Towing separation heavy wrecker
Max. towing weight	50000kg
Max. lift weight	25000kg
Max. towing weight (Arm stretched out all)	9000Kg
Max. effective length of the bracket arm	3410mm
Arm expansion stroke	1780mm
Hoisting mechanism
Max. Lifting weight	40000Kg
Max. lift height	12000mm
Rotating degree	360° Continuous rotary
Rated traction of winch (layer 1)	20000*2KN
Wire rope length	50m
Outrigger
Lateral span of front outrigger	6588mm
Lateral span of rear outrigger	4079mm
Longitudinal span of front and rear outrigger	5700mm
Configuration
360º Rotating degree devises, Three type hexagon boom , three corbel , Split cargo box , one set of remote control device , three rear work light, 20000*2KN winch, 50m steel wire rope, one washing hand tank , five pairs of asked fork, one pair asked fork base, two pcs grabs, one Long line engineering lights (LED), one set of auxiliary lamp assembly, one set of Auxiliary brake pipe assembly

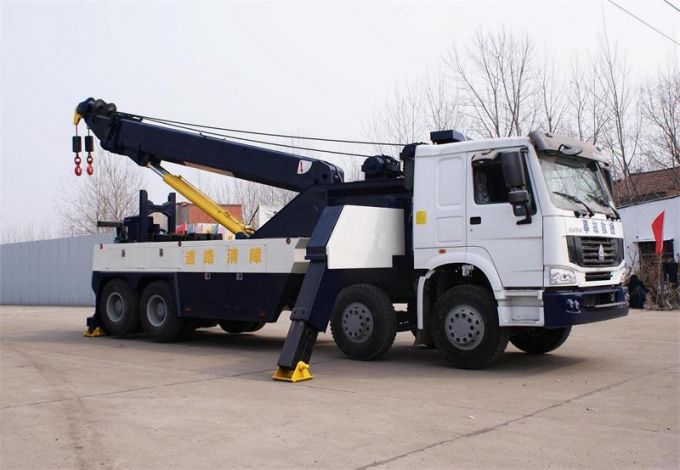

II---Pictures for reference


III---Many kinds of wrecker truck
