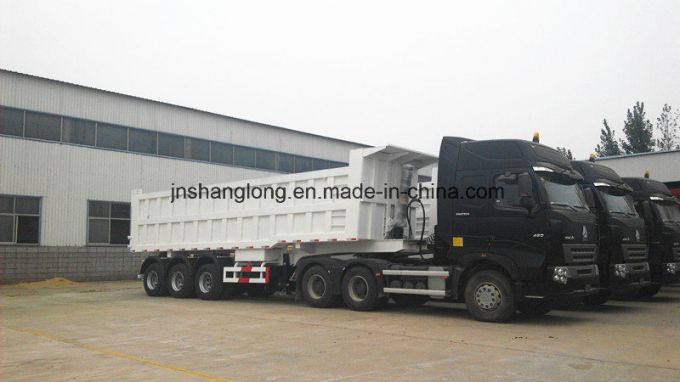

50t 3 Axle Rear Dumper Semi Trailer for Sales

50T 3AXLE REAR DUMPER SEMI TRAILER


MAIN TECHNOLOGY PARAMETERS:

Tare weight	10000kg
Size	11000mm*2500mm*3500mm
Payload	50T
Main beam	Heavy duty and extra durability designed Ibeam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 18mm,width140mm;Middle Flange 12mm height 500mm;bottom flange 20mm,width 140mm
Floor	6mm checkered plate
Side wall	Height 1700mm thickness 4mm
Cylinder	HYVA214-8130
Axle	3 axleFUWA brand13T
Suspension	Mechanical suspension American type local brand
Leaf spring	Leaf spring 10pcs*90*13mm
Tire	12.00R20 double star brand 12pcs
Wheel rim	8.5-20 jingu brand12pcs
Kingpin	JOST brand 2" bolt-in king pin
Landing gear	JOST brand two-speed, manual operating ,heavy duty landing gear 24T
Twist lock	No
Braking system	WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
ABS	No
Light	LED 8side lights and 2rear lights 2width lamp
Painting	Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint
Accessories	One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light

We are the specialized truck trailer supplier in China. With high reputation and competitive price. Welcome your inquiry at any time. Email me or call me directly if any question at any time.
Attd: Haitao Yan
mobile: +86-18653113471
