60t 4 Axle 3m-3.5m Extend Width Truck Trailer

- Price can be negotiated
- 1 Unit
- 73 Unit
- 8 days
Product Description
60T 4Axle 3m-3.5m Extend Width Truck Trailer


More information, please contact with Ady at any time, thanks alot.
Mobile:+86 18653113471

Tare weight | 11000kg |
Size | 13000mm*3000mm-3500*2900mm |
Payload | 60T |
Main beam | Heavy duty and extra durability designed Ibeam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 20mm,width140mm;Middle Flange 14mm height 500mm;bottom flange 20mm,width 140mm |
Side beam | 25# channel steel(Q235) |
Cross member | 16# channel steel(Q235) |
Floor | 5mm checkered plate |
Side wall | No |
Front board | No |
Axle | 4 axleFUWA brand13T |
Suspension | Mechanical suspension American type local brand |
Leaf spring | Leaf spring 10pcs*90*13mm |
Tire | 11.00R20double star brand16pcs |
Wheel rim | 8.0-20jingu brand16pcs |
Kingpin | JOST brand 2" weld king pin |
Landing gear | JOST brand two-speed, manual operating ,heavy duty landing gear 24T |
Ladder | Mechanical ladder |
Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
ABS | No |
Lights | LED 8side lights and 2rear lights 2width lamp |
Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
Accessories | One standard tool box,one spare tire carrier,one shaft head wrench,four side light,two rear light |

More information, please contact with Ady at any time, thanks alot.
Mobile:+86 18653113471

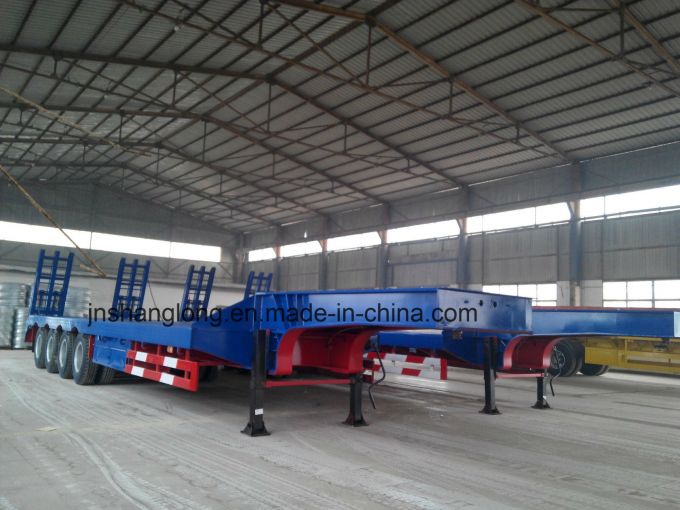

Product Images
