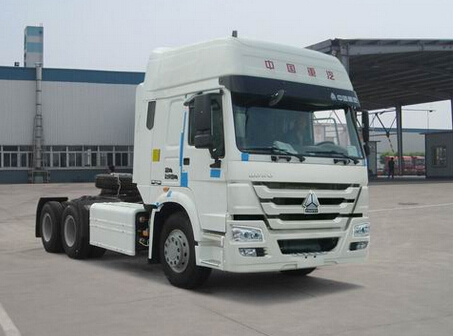

Sinotruck 6X4 380HP CNG Tractor Head/ Prime Mover

HOWO 6X4 CNG TRACTOR HEAD TRUCK/ Prime Mover


1/ Shandong Shanglong Economic and Trade Co. Ltd. Is located in Jinan, China. With more years development, we specializes in exporting SINOTRUCK series trucks, equipment and spare parts.


2. Spare part business Range:
1. TRUCK filters: Multi-series filter, air filter, fuel filter, oil filter, like SINOTRUK, FOTON, FAW, DONGFENG, SHACMAN, Volvo, CAT, Renault, KOMASTU

2. Differential assembly: For SCANIA, Volvo, Benz, MAN, Nissan, HINO, ISUZU, MITSUBISHI

3. SINOTRUK whole series spare parts

HOWO CNG TRACTOR SPECIFICATION
MAKE		SINOTRUK
MODEL		HOWO CNG
MODEL CODE		ZZ4257N3847E1CB
TYPE		TRACTOR TRUCK
DRIVE FORM		6 X 4
KERB WEIGHT (kg)		9200
Total tractor weight (kg)		25000
Total weight of trailer(kg)		Advisable 38, 100
ENGINE
MAKE			CNHTC
MODEL			T12.38, 380HP
TYPE			4 stroke, 6 cylinder inline, turbo charger inter cooled, lean burning, speak plug, E-control pressure-adjusting gas system
EMISSION STANDARD			EURO III
DISPLACEMENT (L)			11.596
TRANSMISSION
MODEL			HW19712 (12 forward + 2 reverse)
CLUTCH			Single plate dry diaphragm spring clutch, 430mm diameter, hydraulically with air assist.
BRAKE SYSTEM
ABS			With ABS
SERVICE BRAKE			Dual Circuit Compress air brake
PARKING BRAKE			Spring Energy, Compressed air operating at rear wheels
AUXILIARY BRAKE			Engine exhaust brake
SUSPENSION SYSTEM
FRONT			Semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers
REAR			Semi-elliptic leaf springs with bogie spring and stabilizer
WHEELS & TIRES
RIMS			Steel 8.5-20, 10 spoke
TIRES			12.00R-20 radial tyre
NUMBER OF TIRE			11 pieces ( included spare wheel)
AXLES
FRONT	MODEL		HF9 - front steering axle
	TYPE		Fist style, integrated " I" beam
	LOADING WEIGHT		9, 000 kg
REAR	MODEL		HC 16 - Tandem Drive Axle
	TYPE		Pressed Welded Housing, Double reduction Hub reduction With Differential Wheel Lock and Axles
	LOADING WEIGHT		16000 kg x 2
	RATIO		4.8; 5.73
ELECTRIC SYSTEM
OPERATION VOLTAGE			24V Negative grounded
STARTER			24V, 7.5kw
ALTERNATOR			3-phrase, 28V, 1540w
BATTERY			2 x12V /165Ah
ACCESORIES			Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp
DRIVER' S CAB
MODEL CODE			LHD, HW79 high cab, 2 bunks, with A/C
STEERING SYSTEM			ZF 8098, Hydraulic with power assistant
DEscriptION			All steel forward control, 55o hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver' s seat and rigid adjustable co-driver' s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, single berth with 4-point support full floating suspension + shock absorbers with transverse stabilizer, safety belt, air conditioner, adjustable steering wheel, adjustable roof flap
INSTRUMENT PANEL			Active check control with indicators, with this instrument the daily manual checks on the vehicle and combined indicators of compressed air pressure, coolant
SEATING			2 Seats
GENERAL PERFORMANCE
MAX. SPEED (km/h)			90
Lx W x H (mm)			7390x2496x3835
WHEELbase			3825+1350
KINGPIN			90#(3.5inch)
GAS TANK CAPACITY			8pcsX140L/pc behind cabin, 4pcsX80L/pc at truck side
