3 Axle 45 Feet Skeleton Truck Trailer

  • 3 Axle 45 Feet Skeleton Truck Trailer
  • USD 9999.15 /Unit
  • 1 Unit
  • 24 Unit
  • 9 days
Product Description
3 Axle 45 Feet Skeleton Semi Trailer

A semi-trailer, an articulated lorry, refers to a trailer having wheels at the back but supported at the front by a towing vehicle. Its centre of gravity is in the front of axles. It also comes with a coupling device passing the horizontal or vertical forces to towing vehicle.

Features and Advantages of semi-trailer:
Compared with individual vehicle, our semi trailer can make comprehensive economical profits for road transportation. Not only is cost reduced by 30%-40%, but also oil consumption is lowered by 20%-30%. More importantly, semi trailer has an important role in promoting logistic operations of China.
1. Container transport semi trailer is specially designed to container transport and it comes with frame construction without floor.
2. Low plate semi trailer offers plain structure without railing.
3. Semi trailer with railing framework embraces a huge enclosed box.
4. Tank semi trailer has a sealed tank framework.
Outer side dimension(mm)14200× 4500× 1470/1850mm
Loading Capacity (Ton)≤ 40 T
AXLES3*13 T, 3 axles, FUWA brand
Tire12R22.5 13pieces Triangle brand
Rim9.0-22.5, 13 pieces
Suspensionmechanical suspension
Spring leaf10 pieces
King pinJost brand 2.0" or 3.5" bolts type
Support leg28T, China brand
Main beamHeight: 500mm, upper plate is 16mm, middle plate is 8mm, down
plate is 16mm
Side beam16# channel plate
Brake chamberFour double and Two single chambers
Twist Locks (Lifting type)12 pieces
ValveWABCO valve
LightLED light
Voltage24V
Receptacle7 ways (7 wire harness)
Product Images

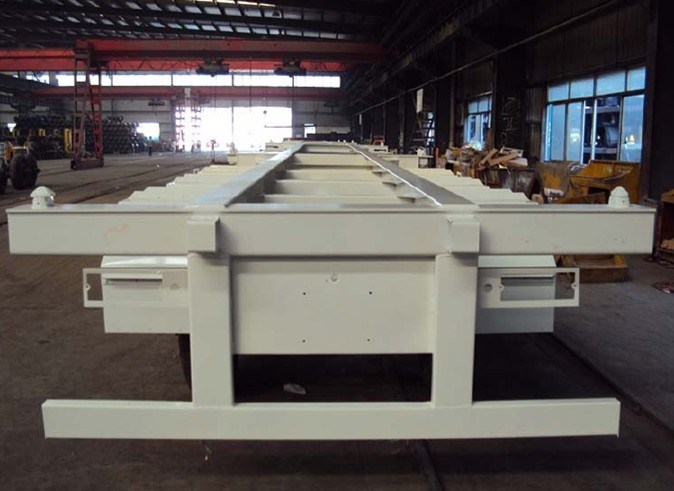

3 Axle 45 Feet Skeleton Truck Trailer Images 1
