/13 Meters Three Axles 50ton Cargo Box Trailer
- Price can be negotiated
- 1 Unit
- 90 Unit
- 19 days
Product Description
13 meters three axles 50ton cargo box trailer
Detailed information
Pictures for reference
Detailed information
| Three Axle Stake Semi Trailer |
| Overall size: 13000x2500x3400mm |
| Payload: 50000 kg |
| Total weight: 7500kg |
| Axle: Three axles, HJ brand,13000kg |
| Landing gear : Holland brand two-speed, manual operating ,heavy duty landing gear 24 t |
| Twist lock: No |
| Kingpin: 2'' bolt-in king pin |
| Tire : 12R22.5 12 pcs |
| Wheel rim: 9.0-22.5 |
| Suspension: Mechanical suspension |
| Leaf spring: Leaf spring 7 pcs |
| Floor: 3mm bottom plate .side wall 1.5 mm |
| Chassis: Heavy duty and extra durability designed I beam;opting for high tensile steel Q345,welded by automatic submerged-Aac processes.Top flange 14mm,width140mm;Middle Flange 8mm;bottom flange16mm, height :140mm |
| Vehicular applications: Cargos transport |
| Drawing: Including |
| Braking system: RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| Painting: Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
| Accessories: One standard tool box |

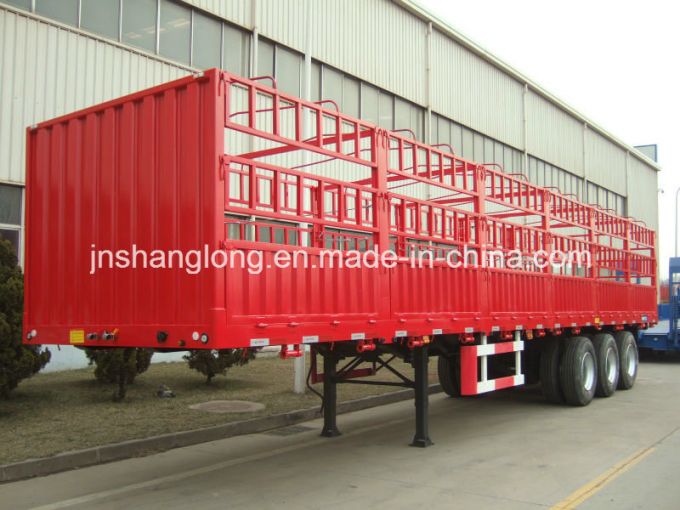

Pictures for reference
