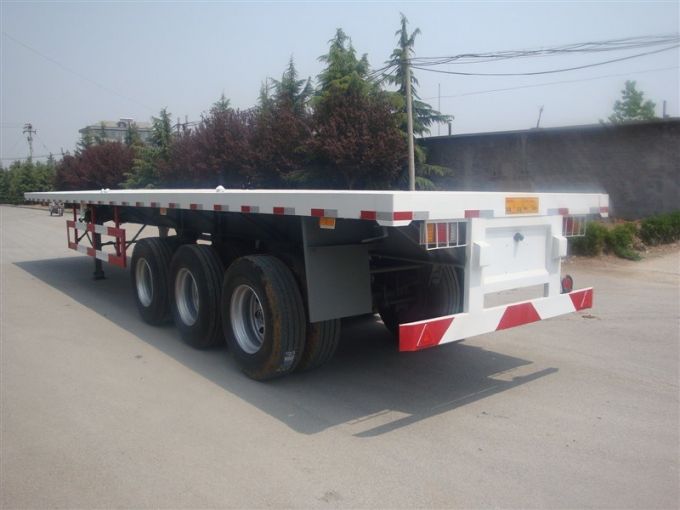

Three Axle Low Bed Trailer for 40 Foot Container

Three axle flated bed container trailer

We're a export company with specializing in SINOTRUCK SHANTUI equipment and spare parts, based in Jinan City, China.

Truck & Equipment Business Range:

(1) SINOTRUK: HOWO Tractor, tipper truck, Cargo truck, semitrailer.

(2) Equipment: wheel loader, road roller, motor grader, truck crane, Truck Mounted Crane etc;

(3) SHANTUI Equipment: SDseries bulldozer, wheel loader, road roller;

SPECIFICATION
Overall dimension	12400x2500X1560mm
Payload	45000kg
Main frame	Heavy duty and extra durability designed; opting for high tensile steel Q345B, welded by automatic submerged-Arc processes.500mm Height I beam,Top Flange 14mm,Middle Flange 8mm; Bottom Flange 16mm
Side beam	16# steel channel
Axle	3*13T axles, FUWA BRAND.
Suspension	A couple of Mechanical 3 axle suspension
Leaf spring	10piece leaf spring,
Floor	3mm checkered plate.
Tire	12 units of 12R22.5 , TRIANGLE BRAND
Wheel rim	12 units of 9.0-22.5
Kingpin	90#(3.5inch)bolt-in king pin
Landing gear	heavy duty landing gear 28T
Twist lock	Twelve no. of ISO twist lock for 2×20ft 1×40ft container
Spare wheel carrier	Two set of spare wheel carrier.
Pneumatic breaking system	four units of T30/30 spring brake chamber; two units of T30 brake chamber two units of reliable local brand 40L air tank;
Tool box	1unit
Remark	Cut from tail Can put 2 set in 40HQ
