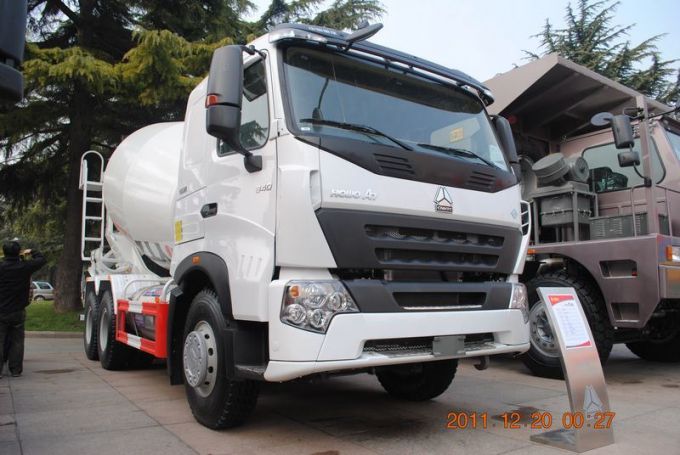

10m3 Sinotruk HOWO A7 Concretet Mixer Truck (ZZ1257M3847C1)

Chassis frame: U-profile parallel ladder frame with section of 300x80x8 mm and reinforced subframe, all cold riveted cross member

Front suspension: Semi-elliptic leaf springs, hydraulic telescope double-action shock absorbers and stabilizer

Rear suspension: Semi-elliptic leaf springs and bogie springs.

Fuel tank: 300L capacity, with locking fuel cap.

1. Model	Howo
2. Chassis	ZZ1257M3847C1(HOWOchassis)
3. Engine Makerand Brandname Model Type Max. power, HP Max. torque, Nm Kind of fuel	SINOTRUCK engine WD615.62, 266HP 4 strokes, water cooled, 6 cylinder, direct injection pressure 266HP 1500Nm diesel
4. Clutch Model Type Plate diameter, mm	GF-φ 430 Single-plate dry clutch 430
5. Gear box Model No. of speeds	HW15710 10
6. Suspension Front suspension Rear suspension	9 semi-elliptic leaf springs with shock absorbers 9/10- leaf spring metal spring type 12 semi-elliptic leaf spring with swing spring metal spring type
7. frame: section of main longitudinal girder section of sub- longitudinal girder Front end width Rear end width	U shape 450*80*20mm 120*80*7mm 1766 1170
8. Steering Model/Type	ZF8098, original made in German.
9. Fuel tank capacity, liters	400
10. Wheels and tires Tire Rim Number Wheel base	12.00-20 8.5-20, 10 holes 10 3265+1350
11. Brakes Service brake Parking brake Auxiliary brake	dual - circuit air braking energy storage spring brake exhaust braking
12. Cabin - Type - Including - Capability	HW70 Air conditioner, stereo radio/cassette recorder, safety belt 2 persons
13. Electric equipment - Operating voltage, V - Starter, V/kw - Alternator, V/w - Batteries	24V, negative grounded 24V, 5.4kw 28V, 27A, 1000w. 2*12V, 180Ah
14. Performance - Driving type - Maximum driving speed, km/h - Emission rating	6*4 90 Euro II
15. Mass parameter - Total mass, kg	25000
16. Body - Brandname - Reduction gear - Hydraulic system - Length, mm - Drum volume, m3 - Drum Slope - Drum rotating speed - Agitating capacity, m3 - Water tank volume, liters - Discharged remain ratio%	WEITAIER PMB8SP American Eaton 5162mm 15.5cbm 11 1- 15r/Min 9 cbm 180L < 1%
17. Accessory - Spare wheel - Tool box	01 set 01 set
