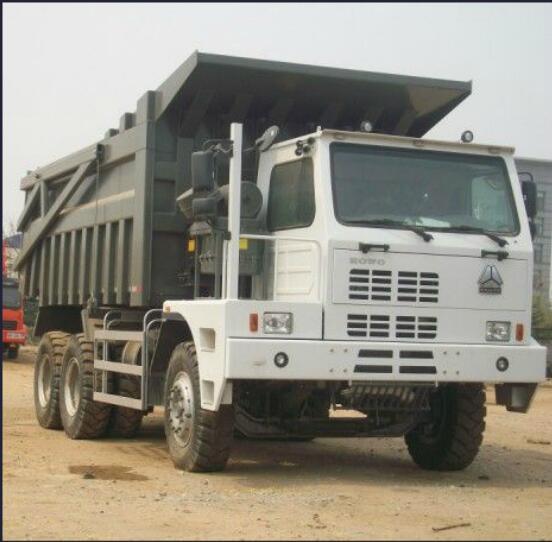

HOWO 6x4 70t Mining Tipper Truck

HOWO is luxury and great with European style based on the world heavy duty truck development trend and combined the taste of domestic customers
The special molding with flying wing-like waist line makes the heavy duty truck to be great, vivid and powerful.

Machinery Name	HOWO off-road mining Dump Truck
Driving type	6x4
Chassis No	ZZ5707V3842CJ
Cabin	HW7D 53 tiltable with A/C and sleeper
Brand	SINOTRUK HOWO
Overall dimensions (L× W× H) mm	8634x3296x3770
Dump body dimensions (L× W× H) mm	5300x3100x1200
Wheel base(mm)	3800+1500
Tare weight(kg)	12000kg
Rated loading weight (kg)	58000kg
Front axle	HF12 Beam boxing type front axle
Rear axle	AC26(cast steel 2× 26ton hub-reduction axle), cross-axle diff locks and inter-axle diff locks Speed ratio: 10.47
Axle load	1x6960 2x10300
Max. Driving speed(km/h)	50
Engine Type	4stroke, direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & inter cooling
Engine Model	D12.42
Nominal power kw/(r/min)	309kw(420hp)
Maximum torque Nm/(r/min)	1500/1100~1600
Emission standard	12L
Gearbox	HW23710
Clutch	Diaphragm spring clutch, diameter 430mm
Brakes	Service brake: dual circuit compressed air brake; Parking brake: spring enengy, compressed air operating on rear wheels Auxillary brake: engine exhaust valve brake
Steering gear	ZF8098, left, hydraulic steering with power assistance
Forward gears transmission ratio	14.28; 10.62; 7.87; 5.88; 4.38; 3.27; 2.43; 1.8; 1.34; 1
Reverse ratio	13.91; 3.18
Electric system	HOWO electric systemminus, 24V, minus earth
Fuel tank(L)	500L
Tire	14.00-25NHS, 1000± 10kPa
front suspension	1500mm; Half the elliptical leaf spring with shock absorber cavitation
Rear suspension	1000mm; The overall balance shaft balance suspension, unilateral inclined outfit 4 riding bolt
Color	Red, white, green, yellow
