Hova 6x4 Mining Tipper Truck (ZZ5607VDNB38400)

Hova 60 tons mining hydraulic truck dumpers (ZZ5707S3840AJ)

Quick Details

Specifications

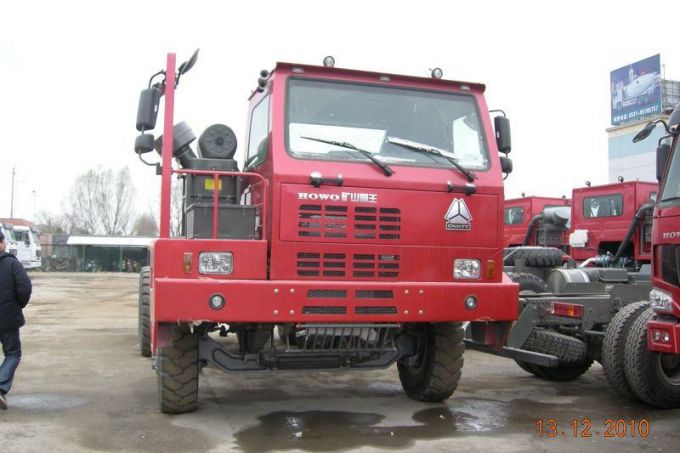

HOWO 60 ton mining hydraulic truck dumpers

Big loading capacity, mainly used in mining area.

High efficiency, professional

HOWO mining dump tuck is developed for mine working condition completely, applies to the transportation of open pit mine, reclamation works, steel works, hydropower construction site and port works.

	Truck model	ZZ5607VDNB38400
	Sales code	HV7/336/K38/6x4D
Size parameters	Dimension (mm)	8360x3000x3475
	Dimension in container (mm)	5800x2800x1500
	Wheelbase(mm)	3800+1500
	Front overhang/rear overhang (mm)	1500/1560
	Min. ground clearance (mm)	380
	Approach angle/departure angle(° )	29/35.5
Weight parameters	Total weight(kg) / Max. rated contained quality	20000/40000
Performance parameters	Max. speed (km/h)	49
	Max. gradeability ( %)	50
Engine	Model	WD615.69
	Rated engine power (kw/rpm)	247/2200
	Max. torque ( N. m/r/min)	1350/1100-1600
	Specific fuel consumption (g/kw. h)	192
Clutch	SINOTRUK 430 spiral spring
Gearbox	Model	HW18710 FULLER 9
	Ratio	14.28 10.62 7.87 5.88 4.38 3.27 2.43 1.8 1.34 1.00 R13.91 R3.18
Drive axle	Strengthened wide steel two-grade reducing & double tires drive axle (10.24)
Front axle	HF9
Overhang	Strengthened front parallel leaf semi-oval steel spring, column shock absorber, front stabilizer bar, strengthened rear complete balancer suspension, 4 U bolts obliquely equipped on single side, rear stabilizer bar
Tire	13.00-25 13.00-20Tube
Brake system	Service brake	Dual circuit brake
	Park brake	Spring energy air cut brake
	Auxiliary	Engine exhaust brake
Electric system	Single line 24V negative grounded
Fuel tank	400L
Min. diameter of tuming (m)	22.5
