Wheel Type Skid Steer Loader with Competitive Price 200kg Hy380

  • Wheel Type Skid Steer Loader with Competitive Price 200kg Hy380
  • USD 12000.00 /Unit
  • 1 Unit
  • 91 Unit
  • 18 days
Product Description
Wheel Type Skid Steer Loader with competitive price 200KG HY380Easier Maintenance
Our mini dingo tyep machine skid steer loader with cralwer type and wheel type, with the open-style design, upper cover and back guard plate can be easily opened and dismounted, you also can easily discharge the wasted engine oil outside the body; All of these can make you replace the spare parts easily, like air filter, engine oil, spark plug and so on.Wheel Type Skid Steer Loader with Competitive Price 200kg Hy380HY380 Wheel type skid steer loader 200kg

Item
HY380
With Chevron engineering Tyre
MetricU.S
Max working height(H3)2134mm84.37 inch
Max pin height(H2)1844mm74.17 inch
Max dumping height(H1)1488mm58.58 inch
Max Dumping distance(E)348mm13.7 inch
Max Dumping Angel(α3)30º30º
Rollback of bucket on ground(α2)25º25º
Departure angel(α1)11º11º
Total height(H)1233mm48.54 inch
Ground clearance(F)118mm4.65 inch
Wheel base(L1)636mm25.0 inch
Overall length without bucket(L3)1752mm69.0 inch
Total width(B2)1160mm45.67 inch
Bucket width(B1)980mm38.6 inch
Total length with bucket(L)2206mm86.9 inch
Turn radius forward turning(R)1307mm51.5 inch
Engine
Rated Power(KW)
Rotating speed(rpm)
Noise(Db)≤95
Hydraulic System
Pressure(Mpa)17
Working Time(s)
Raise4.27
Dump1.34
Lower3.31
Operating Load200Kg441Lb
Bucket Capacity0.15m³5.33ft³
Max Lifting Force375Kg827Lb
Travel Speed0-5.5Km/h0-3.4mile/h
Operating Weight890kg1958lb
Product Images

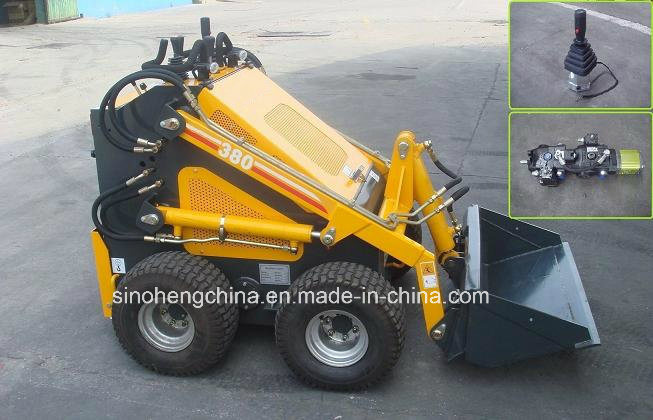

Wheel Type Skid Steer Loader with Competitive Price 200kg Hy380 Images 1
