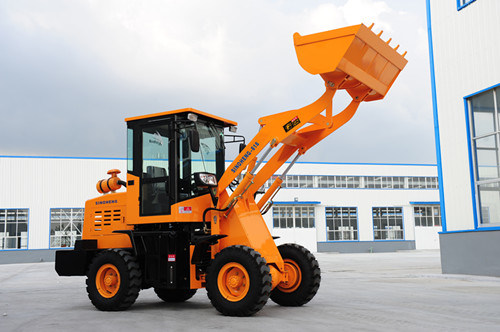

Hydraulic Loader, Mini Hydraulic Loader 1.8 Ton

Hydraulic Loader, Mini Hydraulic Loader

1.0 Engine details:
(1) Model: 490 (XI CHAI)
(2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine
(3) Rated Power: 51HP
(4) Rated Speed: 2400 r/min (rpm)
2.0 Transmission System
(1) Type: Hydraulic torque converter
3.0 Bucket
(1) Bucket Capacity: 0.5m3
(2) Bucket width: 1800mm
(3) Max. Breakout Force: 25KN
(5) Rated Load: 1800kg
(6) Operating Weight: 2650kg
4.0 Overall Dimensions:
(1) Overall Length (Bucket on ground position): 4800mm
(2) Overall Height
(a) Ground to Cabin Top: 2770mm
(b) Ground to exhaust pipe: It is below from the top of cab
(c) Dumping Height: 3200mm
(3) Overall Width: 1720mm
5.0 Operating Specifications
(1) Steering System: Articulated frame with hydraulic power steering
(2) Min Turning Radius: 4500mm
(3) Driving System: Four wheel drive, four wheel brake.
6.0 Brake System
(1) Service Brake: Hydraulic disc brake on four wheels
(2) Parking Brake: Hand operated
7.0 Tyre
(1) Model: 1400-16
8.0 Wheelbase: 2080mm
9.0 Track: 1400mm
Shipment: 2units shipped in 1X40HC
