2 Ton 0.7m3 Mini Wheel Loader

  • 2 Ton 0.7m3 Mini Wheel Loader
  • USD 12000.00 /Unit
  • 1 Unit
  • 96 Unit
  • 13 days
Product Description
Mini Wheel Loader, mini Loader, Hydraulic Loader, Mini Hydraulic Loader (918) 1.8ton/0.7m3
1.0 Engine details:
(1) Model: 485(XI CHAI)
(2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine
(3) Rated Power: 45HP
(4) Rated Speed: 2400 r/min (rpm)
2.0 Transmission System
(1) Type: Fixed-spindle Power shift
3.0 Bucket
(1) Bucket Capacity: 0.55 m3
(2) Bucket width: 1550mm
(3) Max. Breakout Force: 20KN
(4) Rated Load: 1600kg
(5) Operating Weight: 2900kg
4.0 Overall Dimensions:
(1) Overall Length (Bucket on ground position): 5450mm
(2) Overall Height
(a) Ground to Cabin Top: 2800mm
(b) Ground to exhaust pipe: It is below from the top of cab
(c) Dumping Height: 2700mm
(3) Overall Width: 1660mm
5.0 Operating Specifications
(1) Steering System: Articulated frame with hydraulic power steering
(2) Min Turning Radius: 4200mm
(3) Driving System: Hydraulic converter

6.0 Brake System
(1) Service Brake: Hydraulic disc brake on four wheels
(2) Parking Brake: Hand operated
7.0 Tyre
(1) Model: 1200-16 (2) Width: 23cm (3) Diameter: 85cm
8.0 Wheelbase: 2150mm
9.0 Track: 1440mm
Shipment: 2units shipped in 1X40HC
2 Ton 0.7m3 Mini Wheel Loader
Bucket Capacity0.7 M3
Rated Power45HP
Rated Speed2400 R/Min (Rpm)
Bucket Width1550mm
Min Turning Radius4200mm


Product Images

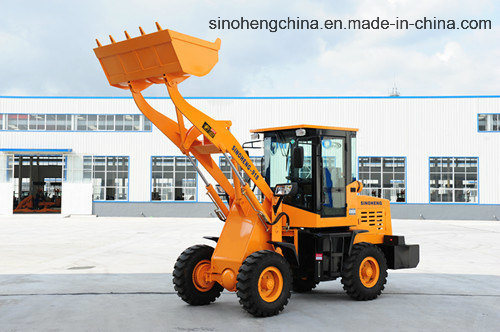

2 Ton 0.7m3 Mini Wheel Loader Images 1
