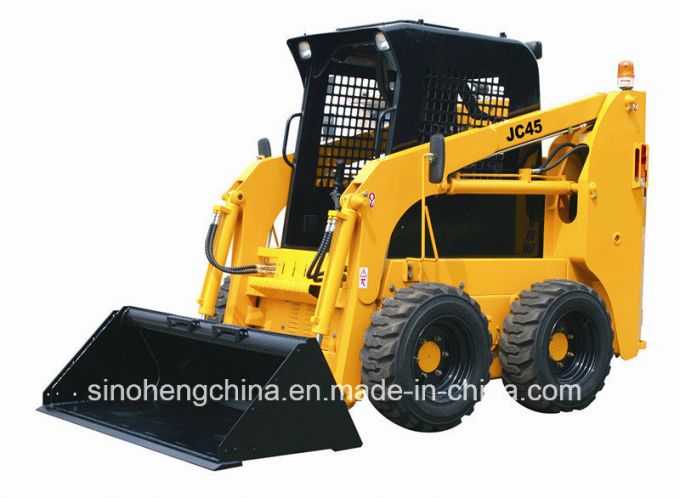

700kg Mini Digger with CE Jc45
- USD 10000.15 /Unit
- 1 Unit
- 16 Unit
- 18 days
Product Description
Mini Digger , Mini Skid steer loader with CEMain features of JC45Compact structure, maneuverable movement suitable for narrow space operation
Open cabin with mechanical control system
Double accelerograph control
Multi-function with a wide range of attachments
Hydraulic brake
Open cabin with mechanical control system
Double accelerograph control
Multi-function with a wide range of attachments
Hydraulic brake
Model Main technical parameter | JC45 | |
A | Overall operating height(mm) | 3980 |
B | Height to bucket hinge pin(mm) | 3080 |
C | Height to top of cab(mm) | 2140 |
D | Height to bottom of level bucket(mm) | 2913 |
E | Overall length without bucket(mm) | 2640 |
F | Overall length with bucket(mm) | 3420 |
G | Dumping angle at maximum height(°) | 40 |
H | Dumping height(mm) | 2380 |
I | Dumping reach(mm) | 700 |
J | Rollback of bucket on ground(°) | 30 |
K | Rollback of bucket at full height(°) | 104 |
L | Wheelbase(mm) | 991 |
M | Ground clearance(mm) | 185 |
N | Angle of departure(°) | 20 |
O | Front turning radius without bucket(mm) | 1168 |
P | Front turning radius(mm) | 1958 |
Q | Rear turning radius(mm) | 1630 |
R | Rear axle to bumper(mm) | 1108 |
S | Tread width, centerline to centerline(mm) | 1450 |
T | Width(mm) | 1720 |
U | Bucket width(mm) | 1740 |
Model | JC45 |
Engine model | 490 |
Bore x stroke(mm) | 95×106 |
Rated power (Kw) | 37 |
Rotating speed(rpm) | 2650 |
Number of cylinders | 4 |
Max. torque (N.m) | 156 |
Displacement (L) | 2.67 |
Max. Speed (km/h) | 12 |
Tire(track) modei | 10-16.5 |
Operating load(kg) | 700 |
Lifting | Arc lifting |
Bucket capacity(m3) | 0.4 |
Rated flux(L/min) | 75 |
High Flow Flux(L/min) | |
Fuel tank capacity(L) | 65 |
Self weight bucket(kg) | 3000 |
Product Images
