45HP 2 Ton 0.5m3 Small Loader, Small Wheel Loader
- USD 20000.00 /Unit
- 1 Unit
- 40 Unit
- 8 days
Product Description
45HP 2 ton 0.5m3 Small Loader, Small Wheel Loader, Mini Hydraulic Loader, Mini Steer Loader
Is a use of both sides of the wheel speed difference and realize the special wheeled chassis vehicle steering equipment, used wheel running gear, all-wheel drive, skid steer can be quickly replaced on the job site or mount a variety of random work equipment, to adapt to different working environment and job content.
Mainly for small jobsites, undulating ground, the job content transformation frequent occasions for infrastructure construction, industrial applications, terminal handling, urban streets, houses, barns, barn, airport runways, etc., but also as a large-scale construction machinery auxiliary equipment.
Is a use of both sides of the wheel speed difference and realize the special wheeled chassis vehicle steering equipment, used wheel running gear, all-wheel drive, skid steer can be quickly replaced on the job site or mount a variety of random work equipment, to adapt to different working environment and job content.
Mainly for small jobsites, undulating ground, the job content transformation frequent occasions for infrastructure construction, industrial applications, terminal handling, urban streets, houses, barns, barn, airport runways, etc., but also as a large-scale construction machinery auxiliary equipment.
Item | Descriptions & Specifications | |
916 | Description | Parameter |
Engine Details | ||
Model | 485(XI CHAI) | |
Engine type | In-linearrangement, water-cooled, four-cycle diesel Engine | |
Rated Power | 45HP | |
Rated Speed | 2400 r/min (rpm) | |
Transmission System | ||
Type: | Fixed-spindle Power shift | |
Bucket | ||
Bucket Capacity | 0.55m3 | |
Bucket width | 1500mm | |
Max. Breakout Force | 20KN | |
Rated Load | 1600kg | |
Operating Weight | 2900kg | |
Overall Dimensions | ||
Overall Length (Bucket on ground position) | 5450mm | |
Overall Height | ||
Ground to Cab Top | 2800mm | |
Ground to exhaust pipe | It is below from the top of cabin | |
Overall Width | 1660mm | |
Operating Specifications | ||
Steering System | Articulated frame with hydraulic power steering | |
Min Turning Radius | 4200mm | |
Driving System | Hydraulic converter | |
Brake System | ||
Service Brake | Hydraulic disc brake on four wheels | |
Parking Brake | Hand operated | |
Tyre | ||
Model | 1200-16 | |
Width | 23cm | |
Diameter | 85cm | |
Wheelbase | 2150mm | |
Track | 1440mm | |
Shipment: 2units shipped in 1x40HC |

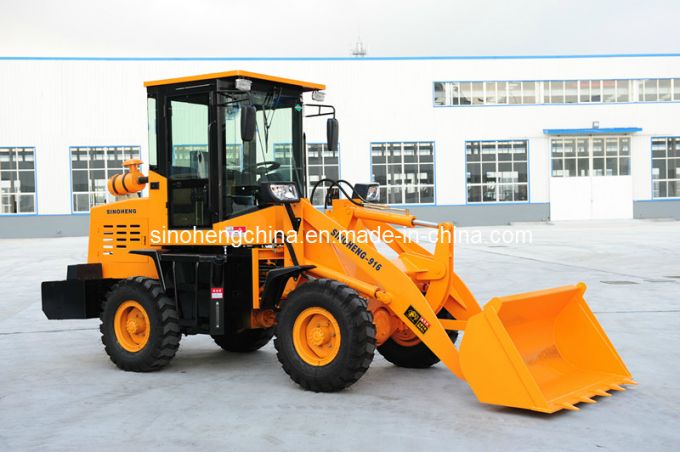

Product Images
