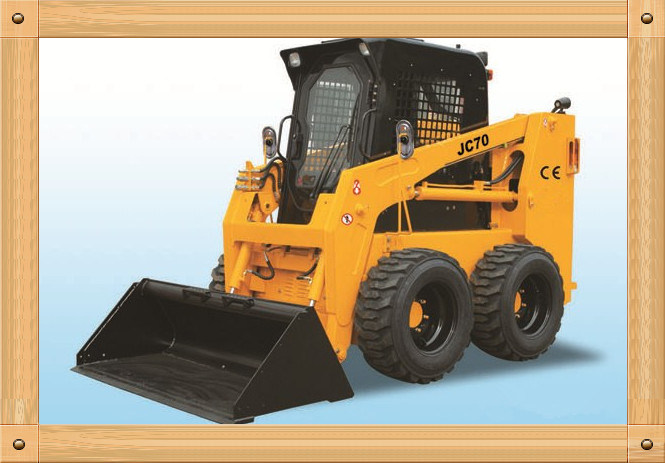

70kw Skid Steer Loader with CE, Mini Hydraulic Loader

70KW Skid Steer Loader With CE, Mini Hydraulic Loader

CE 1.2ton/ 70kw/ 0.55m3 Skid Steer Loader
Main features of TS100
Compact structure, maneuverable movement suitable for narrow space operation
Close cabin with joystick control system
Double accelerograph control
Auto-leveling system
Multi-function with a wide range of attachments
Hydraulic brake

Model Main technical parameter		TS100
A	Overall operating height(mm)	4070
B	Height to bucket hinge pin(mm)	3150
C	Height to top of cab(mm)	2160
D	Height to bottom of level bucket(mm)	2983
E	Overall length without bucket(mm)	3000
F	Overall length with bucket(mm)	3700
G	Dumping angle at maximum height(°)	40
H	Dumping height(mm)	2450
I	Dumping reach(mm)	700
J	Rollback of bucket on ground(°)	30
K	Rollback of bucket at full height(°)	104
L	Wheelbase(mm)	1500
M	Ground clearance(mm)	200
N	Angle of departure(°)	20
O	Front turning radius without bucket(mm)	1365
P	Front turning radius(mm)	2200
Q	Rear turning radius(mm)	1742
R	Rear axle to bumper(mm)	938
S	Tread width, centerline to centerline(mm)	1654
T	Width(mm)	1994
U	Bucket width(mm)	2030

Model	TS100
Engine model	226B
Bore x stroke(mm)	106×130
Rated power (Kw)	70
Rotating speed(rpm)	2200
Number of cylinders	4
Max. torque (N.m)	380
Displacement (L)	4.5
Max. Speed (km/h)	12/18
Tire(track) modei	320×84
Operating load(kg)	1200
Lifting	Arc lifting
Bucket capacity(m3)	0.55
Rated flux(L/min)	88
High Flow Flux(L/min)	122
Fuel tank capacity(L)	90
Self weight bucket(kg)	4280
