Ce 1000kg 55kw 0.5m3 Skid Steer Loader Jc75
- USD 10000.15 /Unit
- 1 Unit
- 30 Unit
- 9 days
Product Description
CE 1000KG 55kw 0.5m3 Skid Steer Loader JC75Main features of JC75
Compact structure, maneuverable movement suitable for narrow space operation
Close cabin with joystick control system
Extended wheelbase
High flow double output
Double accelerograph control
Auto-leveling system
Multi-function with a wide range of attachments
Hydraulic brakeMini Skid Steer Loader Specification:
Compact structure, maneuverable movement suitable for narrow space operation
Close cabin with joystick control system
Extended wheelbase
High flow double output
Double accelerograph control
Auto-leveling system
Multi-function with a wide range of attachments
Hydraulic brakeMini Skid Steer Loader Specification:
Model | JC75 |
Engine model | 498 |
Bore x stroke(mm) | 98×105 |
Rated power (Kw) | 55 |
Rotating speed(rpm) | 2450 |
Number of cylinders | 4 |
Max. torque (N.m) | 245 |
Displacement (L) | 3.168 |
Max. Speed (km/h) | 12(8/16) |
Tire(track) modei | 12-16.5 |
Operating load(kg) | 1050 |
Lifting | Arc lifting |
Bucket capacity(m3) | 0.5 |
Rated flux(L/min) | 75 |
High Flow Flux(L/min) | 115 |
Fuel tank capacity(L) | 90 |
Self weight bucket(kg) | 3500 |
Model Main technical parameter | JC75 | |
A | Overall operating height(mm) | 4070 |
B | Height to bucket hinge pin(mm) | 3150 |
C | Height to top of cab(mm) | 2160 |
D | Height to bottom of level bucket(mm) | 2983 |
E | Overall length without bucket(mm) | 2880 |
F | Overall length with bucket(mm) | 3580 |
G | Dumping angle at maximum height(°) | 40 |
H | Dumping height(mm) | 2450 |
I | Dumping reach(mm) | 710 |
J | Rollback of bucket on ground(°) | 30 |
K | Rollback of bucket at full height(°) | 104 |
L | Wheelbase(mm) | 1115 |
M | Ground clearance(mm) | 205 |
N | Angle of departure(°) | 20 |
O | Front turning radius without bucket(mm) | 1250 |
P | Front turning radius(mm) | 2112 |
Q | Rear turning radius(mm) | 1774 |
R | Rear axle to bumper(mm) | 1082 |
S | Tread width, centerline to centerline(mm) | 1500 |
T | Width(mm) | 1880 |
U | Bucket width(mm) | 1880 |

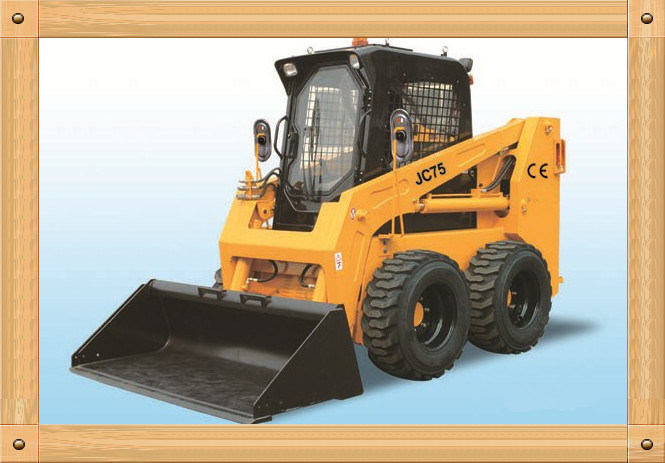

Product Images
