37 Kw Mini Loader, Skid Steer Loader with CE

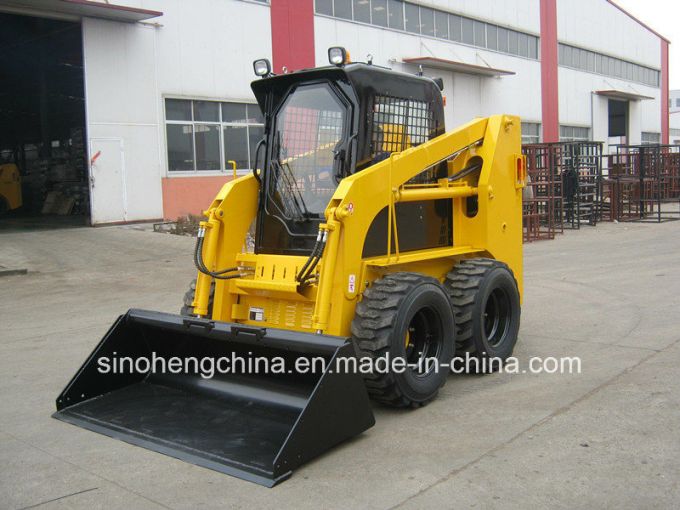

37 Kw Mini Loader, Skid Steer Loader With CE*JC50D Skid Steer Loader
*Mini skid loader
*Auxiliary hydraulic couplers
*Hydraulic Joystick
*small skid steer loader
Main features of JC50D
Compact structure, maneuverable movement suitable for narrow space operation
Close cabin with joystick control system
Low profile design for special working area
Double accelerograph control
Multi-function with a wide range of attachments
Hydraulic brake
Solid tireAttachments

Backhoe, Breaker, Angle blade, Auger, Sweeper, Pallet fork,

Specifications
Rated Operating Capacity	750
Tipping load(Kg)	1500
Bucket Capacity(m 3 )	0.3
Lifting Force(Kg)	1500
Hydraulic Pump Flow(L/min)	75
Engine power(HP)	60
Weight(Kg)	2900
Max.Travel Speed (km/h)	8
Grade ability(°)	20
Tire	28×9-15
Fuel/hyd.oil capacity(L)	75/75
Dimensions
A.Height at Maximum Extension	3300
B.Hinge Pin Height	2810
C.Total Height	1600
D.Length with Bucket	3490
E.Length without Bucket	2900
F.Width with Bucket	1680
G.Track Width	1400
H.Wheelbase	991
J.Ground Clearance	150
K.Dumping Angle	40
L.Dumping Height	1500
M.Maximum Reach	1000
