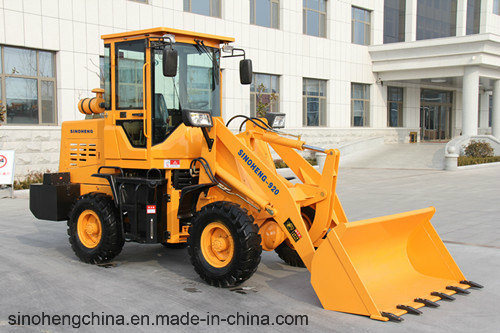

2 Ton /1 M3 Small Wheel Loader, Small Loader (920)

2 Ton /1 M3 small Wheel Loader, Small Loader (920)
Is a use of both sides of the wheel speed difference and realize the special wheeled chassis vehicle steering equipment, used wheel running gear, all-wheel drive, skid steer can be quickly replaced on the job site or mount a variety of random work equipment, to adapt to different working environment and job content.
Mainly for small jobsites, undulating ground, the job content transformation frequent occasions for infrastructure construction, industrial applications, terminal handling, urban streets, houses, barns, barn, airport runways, etc., but also as a large-scale construction machinery auxiliary equipment.

Specification	Modle No.	ZLY920H
	Rated load	1500kg
	Bucket capacity	0.8cbm
	Dump height	3200mm
	Dump distance	900mm
	Boom rise time	4.5s
	Discharge time	3.5s
	Boom fall time	3.0s
	Machine weight	3900kg
	L*W*X	5900(4000)*1800*2800mm
Engine	Model	QUANCHAI 490
	Rated power	38kw
Variable speed in the form	Hydraulic variable pitch CVT
Drive type	Four-wheel drive
Brake System	Service braking	Front and rear disk brake
Tire	Standard tire	20.5-16
Configuration	luxurycabwithfan,radio,reversemirror,reversecamera, Mechanicjoystick,Enginepreheating,cabinheater
