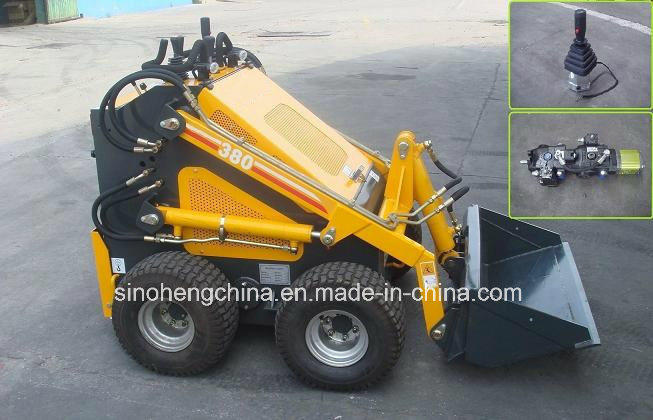

Mini Dingo Type Skid Steer Loader 200kg Hy380

Mini Dingo Type Skid Steer Loader 200KG HY380Easier Maintenance
Thanks to the open-style design, upper cover and back guard plate can be easily opened and dismounted, you also can easily discharge the wasted engine oil outside the body; All of these can make you replace the spare parts easily, like air filter, engine oil, spark plug and so on.Mini Dingo Type Machine skid steer loader 200kg

Item	HY380
	With Chevron engineering Tyre
	Metric	U.S
Max working height(H3)	2134mm	84.37 inch
Max pin height(H2)	1844mm	74.17 inch
Max dumping height(H1)	1488mm	58.58 inch
Max Dumping distance(E)	348mm	13.7 inch
Max Dumping Angel(α3)	30º	30º
Rollback of bucket on ground(α2)	25º	25º
Departure angel(α1)	11º	11º
Total height(H)	1233mm	48.54 inch
Ground clearance(F)	118mm	4.65 inch
Wheel base(L1)	636mm	25.0 inch
Overall length without bucket(L3)	1752mm	69.0 inch
Total width(B2)	1160mm	45.67 inch
Bucket width(B1)	980mm	38.6 inch
Total length with bucket(L)	2206mm	86.9 inch
Turn radius forward turning(R)	1307mm	51.5 inch
Engine
Rated Power(KW)
Rotating speed(rpm)
Noise(Db)	≤95
Hydraulic System
Pressure(Mpa)	17
Working Time(s)
Raise	4.27
Dump	1.34
Lower	3.31
Operating Load	200Kg	441Lb
Bucket Capacity	0.15m³	5.33ft³
Max Lifting Force	375Kg	827Lb
Travel Speed	0-5.5Km/h	0-3.4mile/h
Operating Weight	890kg	1958lb
